Interactive Graphics in R

class: center, middle, inverse, title-slide

# Interactive Graphics in R
## <a href='https://plot.ly/r/'>with Plotly</a>
### Morten Andersen & Andreas Hald Espensen
### 2019-04-23 (updated: 2019-05-09)

---

# Basics

Plotly in R website: https://plot.ly/r/

"Plotly is an R package for creating interactive web-based graphs via the open source JavaScript graphing library [plotly.js](https://plot.ly/javascript/)."

Rendered locally through the [htmlwidgets](http://www.htmlwidgets.org/) framework.

**Installation**:

```r
if (!require("plotly")) install.packages("plotly")
library(plotly)
```

**Getting Started**: https://plot.ly/r/getting-started/

*How did we come across the Plotly library?*

???

By no means exhaustive. Only an introduction to plotly.

Working on shiny apps as a Student Assistant at Grundfos' Data Analytics department.

---

# Creating a Plot

`plot_ly`: Maps R objects to plotly.js.

**Usage**:

```r
plot_ly(data = data.frame(), ..., type = NULL, name, color, colors = NULL,
  alpha = NULL, stroke, strokes = NULL, alpha_stroke = 1, size,
  sizes = c(10, 100), span, spans = c(1, 20), symbol, symbols = NULL,
  linetype, linetypes = NULL, split, frame, width = NULL, height = NULL,
  source = "A")
```

`data`: Data frame (optional)

`...`: Arguments passed along to the trace type. E.g. `x = 1:10`, `x = ~Time`, `y`, etc.

???

---

# Creating a Plot - Let's see it in action!

```r
p <- plot_ly(midwest, x = ~percollege, color = ~state, type = "box")
p
```

<div id="htmlwidget-6e225ec11ee30e340626" style="width:864px;height:396px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-6e225ec11ee30e340626">{"x":{"visdat":{"1db34d3bff68":["function () ","plotlyVisDat"]},"cur_data":"1db34d3bff68","attrs":{"1db34d3bff68":{"x":{},"color":{},"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"type":"box"}},"layout":{"margin":{"b":40,"l":60,"t":25,"r":10},"xaxis":{"domain":[0,1],"automargin":true,"title":"percollege"},"yaxis":{"domain":[0,1],"automargin":true},"hovermode":"closest","showlegend":true},"source":"A","config":{"showSendToCloud":false},"data":[{"fillcolor":"rgba(102,194,165,0.5)","x":[19.6313918,11.2433076,17.0338194,17.2789539,14.475999,18.9046238,11.9173877,16.1971209,14.1076487,41.2958081,13.567226,15.1108627,13.6830103,15.3874693,25.1750412,28.0181167,16.9858076,14.5978891,32.835928,16.1959601,16.8685259,42.7688669,16.8399327,16.9356446,20.2751964,13.6029941,17.8273561,14.7056662,15.5321976,11.3675214,13.0495464,18.3778784,14.0467657,20.6605223,14.3184422,13.7735504,18.7236334,15.1666829,36.6436653,15.0256035,18.3698955,14.7583093,16.4133528,14.3524363,27.5938834,17.6409622,24.8893485,19.3436365,37.8340529,16.8995267,14.5388128,18.476678,14.5031437,17.9492226,27.9280239,28.0541488,33.8185507,19.8618556,14.0083929,19.6994744,16.4493851,17.5348837,13.5054525,14.034565,18.511502,16.4744211,19.9206186,11.723732,20.7244228,15.7185951,18.7793745,25.838414,13.5622441,22.011857,12.1742809,14.2502659,14.3687708,16.5212794,12.7412789,21.5077402,21.3007289,21.184251,15.4883463,28.9881549,14.6365422,13.0760986,15.9511699,16.8789809,19.8795753,20.0448263,17.8795898,17.0571729,24.7300469,20.4582651,15.9600242,15.6807027,15.9287398,16.5530497,24.7568609,21.0595616,22.652364,22.8052176],"type":"box","orientation":"h","name":"IL","marker":{"color":"rgba(102,194,165,1)","line":{"color":"rgba(102,194,165,1)"}},"line":{"color":"rgba(102,194,165,1)"},"xaxis":"x","yaxis":"y","frame":null},{"fillcolor":"rgba(252,141,98,0.5)","x":[16.1156797,27.3597862,22.8468145,13.4643978,12.9819635,27.8306241,19.8002103,15.4562536,13.2149823,16.8123574,14.1137248,16.045283,8.54375099,13.2391267,15.5742757,13.9213675,15.581854,21.1970145,17.1676628,18.3723425,11.4249881,20.5498928,11.1452991,12.9935988,13.929867,15.50432,15.5381671,14.9522958,42.1311499,20.4899394,13.1074407,24.2200345,13.2576823,20.2298144,16.9731386,13.1423129,14.8558462,12.771798,17.5460903,10.1458975,22.308069,19.9757478,19.2629151,11.1118012,17.6686138,17.1792531,13.1476522,16.401998,26.7446886,17.7775263,13.5396226,14.4075703,37.7422954,16.9252277,14.6798142,12.1746236,12.6387629,10.7029216,9.78827088,11.1649179,14.6129001,11.0422948,13.842852,24.455887,17.2106825,14.1710559,15.734664,12.6200972,13.5281456,12.8463697,24.611669,10.5895865,14.7000195,14.1338236,10.0140252,18.6080204,15.4816696,9.47158524,36.2454446,15.4219389,12.6449852,21.7585174,12.2726866,22.7230118,16.0805162,13.399963,23.8155668,10.8145974,15.5891252,18.5655038,16.5838347,15.809776],"type":"box","orientation":"h","name":"IN","marker":{"color":"rgba(252,141,98,1)","line":{"color":"rgba(252,141,98,1)"}},"line":{"color":"rgba(252,141,98,1)"},"xaxis":"x","yaxis":"y","frame":null},{"fillcolor":"rgba(141,160,203,0.5)","x":[14.1150923,16.2755866,18.0660208,18.9337962,19.039803,11.8278471,14.5760743,17.2519754,18.2258245,21.4208568,23.742011,16.066702,21.4885192,15.8443516,22.6527251,14.6477089,16.9397657,12.0419487,22.8647363,18.7787018,18.912404,20.4206544,26.9787819,26.8725681,20.1454244,11.4331387,21.1730815,30.9753249,16.4441292,16.4684698,24.7650877,14.3082727,36.7600619,15.116835,16.2342399,15.4575777,27.2497358,21.2057826,34.5571857,11.4555097,28.6383762,14.4522145,11.3134379,16.1542355,32.5963872,18.7880617,27.5866359,14.4056678,15.2878703,20.6866911,16.2528217,26.763554,18.5401286,25.0460405,15.084171,35.6088365,13.280021,17.4296096,14.160017,13.4575569,19.0433213,15.6946934,36.9635114,16.9024096,11.6568382,15.9567602,13.6658394,12.9210381,20.0211305,26.9656935,13.8933764,13.363353,19.7081294,17.641192,17.0117257,13.7970398,14.5667198,17.2912268,14.1243101,17.8047443,48.0785102,19.4104036,18.2322106],"type":"box","orientation":"h","name":"MI","marker":{"color":"rgba(141,160,203,1)","line":{"color":"rgba(141,160,203,1)"}},"line":{"color":"rgba(141,160,203,1)"},"xaxis":"x","yaxis":"y","frame":null},{"fillcolor":"rgba(231,138,195,0.5)","x":[8.74173036,17.3660604,17.2669455,13.2435395,29.1494085,16.1764706,14.1576729,11.4336901,24.2252343,11.323289,13.9121748,17.784992,19.6893454,15.7631208,13.0905778,11.6793426,14.258027,25.0853882,13.475094,18.1881619,31.5940573,18.7380268,21.0773874,11.8740898,32.204593,16.4765579,14.9341366,31.6279977,31.956732,13.5143719,29.7883109,24.4504965,16.0309861,10.5537945,15.2589751,12.3112711,12.85435,9.33070866,13.4497842,10.9845318,13.8431503,16.771139,23.6828055,12.2083684,18.1793685,13.3233757,18.8616572,23.5504285,13.3788082,18.1757973,15.0270375,23.7026065,11.677498,14.1000841,19.2777119,10.513927,26.5504804,11.3808463,12.1051405,15.3234543,8.84588804,19.338309,11.4884393,10.1076709,13.0943276,12.4445328,21.8818751,11.233264,15.7080088,16.7975615,14.1156575,16.2824097,13.7772608,15.6221022,17.3762105,18.9896041,24.7331393,15.5998451,13.0834179,16.9825108,15.1100169,7.91325578,24.4193518,19.0096756,18.4454309,14.4987147,29.0951102,13.7107444],"type":"box","orientation":"h","name":"OH","marker":{"color":"rgba(231,138,195,1)","line":{"color":"rgba(231,138,195,1)"}},"line":{"color":"rgba(231,138,195,1)"},"xaxis":"x","yaxis":"y","frame":null},{"fillcolor":"rgba(166,216,84,0.5)","x":[12.4274917,18.3200156,19.425147,25.8228923,26.2931785,17.9412424,13.6760641,19.7803247,18.1533363,13.84631,20.852313,16.599469,43.6264509,15.9254638,22.4883413,20.9940872,26.2870159,29.8544673,15.6035329,20.8318653,13.5699001,21.6803841,19.8751776,17.3050671,20.483251,18.7317293,15.3240741,22.1656323,14.3912738,20.3282422,14.3909586,30.4885126,16.4620371,13.6317946,17.4417943,19.0711481,21.877375,15.4275441,14.0016473,7.33610822,25.3558337,17.3724213,13.4311741,21.9338239,24.8578251,37.4197798,15.7492355,24.464372,18.5920497,24.6343275,15.527175,22.9065131,17.4993368,19.9064402,16.7559769,28.5880867,19.833921,17.9479167,14.8077953,20.8371926,15.0650908,17.5516579,18.9421311,19.2118611,23.1569039,19.0168872,23.3909001,35.3967841,16.5498688,15.064584,24.9955036,21.6663817],"type":"box","orientation":"h","name":"WI","marker":{"color":"rgba(166,216,84,1)","line":{"color":"rgba(166,216,84,1)"}},"line":{"color":"rgba(166,216,84,1)"},"xaxis":"x","yaxis":"y","frame":null}],"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

???

`Midwest` data set: Demographic information of midwest counties.
`percollege`: Percent college educated.

---

# Connection with ggplot2

Contains the function `ggplotly` which will convert `ggplot2` figures into a Plotly object.

You have the option to manipulate the object with the `style` function.

More information at: https://plot.ly/ggplot2/extending-ggplotly/

???

---

# Connection with ggplot2

```r
p <- ggplot(fortify(forecast::gold), aes(x, y)) + geom_line()
```

```
## Registered S3 method overwritten by 'xts':
##   method     from
##   as.zoo.xts zoo
```

```
## Registered S3 method overwritten by 'quantmod':
##   method            from
##   as.zoo.data.frame zoo
```

```
## Registered S3 methods overwritten by 'forecast':
##   method             from
##   fitted.fracdiff    fracdiff
##   residuals.fracdiff fracdiff
```

```r
p
```

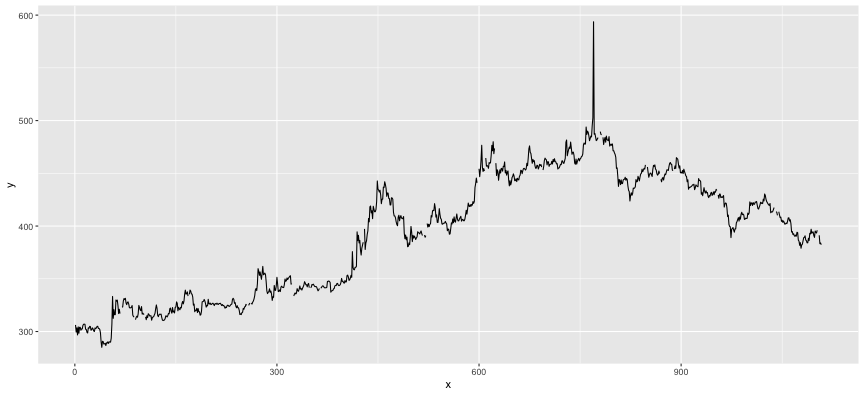

![](index_files/figure-html/unnamed-chunk-4-1.png)

???

`gold`: Gold price time series - Daily morning gold prices in US dollars. 1 January 1985 - 31 March 1989.

---

# Connection with ggplot2

```r
p <- ggplot(fortify(forecast::gold), aes(x, y)) + geom_line()
gg <- ggplotly(p)
gg
```

<div id="htmlwidget-b23523aaf428f923599e" style="width:864px;height:396px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-b23523aaf428f923599e">{"x":{"data":[{"x":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175,176,177,178,179,180,181,182,183,184,185,186,187,188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,204,205,206,207,208,209,210,211,212,213,214,215,216,217,218,219,220,221,222,223,224,225,226,227,228,229,230,231,232,233,234,235,236,237,238,239,240,241,242,243,244,245,246,247,248,249,250,251,252,253,254,255,256,257,258,259,260,261,262,263,264,265,266,267,268,269,270,271,272,273,274,275,276,277,278,279,280,281,282,283,284,285,286,287,288,289,290,291,292,293,294,295,296,297,298,299,300,301,302,303,304,305,306,307,308,309,310,311,312,313,314,315,316,317,318,319,320,321,322,323,324,325,326,327,328,329,330,331,332,333,334,335,336,337,338,339,340,341,342,343,344,345,346,347,348,349,350,351,352,353,354,355,356,357,358,359,360,361,362,363,364,365,366,367,368,369,370,371,372,373,374,375,376,377,378,379,380,381,382,383,384,385,386,387,388,389,390,391,392,393,394,395,396,397,398,399,400,401,402,403,404,405,406,407,408,409,410,411,412,413,414,415,416,417,418,419,420,421,422,423,424,425,426,427,428,429,430,431,432,433,434,435,436,437,438,439,440,441,442,443,444,445,446,447,448,449,450,451,452,453,454,455,456,457,458,459,460,461,462,463,464,465,466,467,468,469,470,471,472,473,474,475,476,477,478,479,480,481,482,483,484,485,486,487,488,489,490,491,492,493,494,495,496,497,498,499,500,501,502,503,504,505,506,507,508,509,510,511,512,513,514,515,516,517,518,519,520,521,522,523,524,525,526,527,528,529,530,531,532,533,534,535,536,537,538,539,540,541,542,543,544,545,546,547,548,549,550,551,552,553,554,555,556,557,558,559,560,561,562,563,564,565,566,567,568,569,570,571,572,573,574,575,576,577,578,579,580,581,582,583,584,585,586,587,588,589,590,591,592,593,594,595,596,597,598,599,600,601,602,603,604,605,606,607,608,609,610,611,612,613,614,615,616,617,618,619,620,621,622,623,624,625,626,627,628,629,630,631,632,633,634,635,636,637,638,639,640,641,642,643,644,645,646,647,648,649,650,651,652,653,654,655,656,657,658,659,660,661,662,663,664,665,666,667,668,669,670,671,672,673,674,675,676,677,678,679,680,681,682,683,684,685,686,687,688,689,690,691,692,693,694,695,696,697,698,699,700,701,702,703,704,705,706,707,708,709,710,711,712,713,714,715,716,717,718,719,720,721,722,723,724,725,726,727,728,729,730,731,732,733,734,735,736,737,738,739,740,741,742,743,744,745,746,747,748,749,750,751,752,753,754,755,756,757,758,759,760,761,762,763,764,765,766,767,768,769,770,771,772,773,774,775,776,777,778,779,780,781,782,783,784,785,786,787,788,789,790,791,792,793,794,795,796,797,798,799,800,801,802,803,804,805,806,807,808,809,810,811,812,813,814,815,816,817,818,819,820,821,822,823,824,825,826,827,828,829,830,831,832,833,834,835,836,837,838,839,840,841,842,843,844,845,846,847,848,849,850,851,852,853,854,855,856,857,858,859,860,861,862,863,864,865,866,867,868,869,870,871,872,873,874,875,876,877,878,879,880,881,882,883,884,885,886,887,888,889,890,891,892,893,894,895,896,897,898,899,900,901,902,903,904,905,906,907,908,909,910,911,912,913,914,915,916,917,918,919,920,921,922,923,924,925,926,927,928,929,930,931,932,933,934,935,936,937,938,939,940,941,942,943,944,945,946,947,948,949,950,951,952,953,954,955,956,957,958,959,960,961,962,963,964,965,966,967,968,969,970,971,972,973,974,975,976,977,978,979,980,981,982,983,984,985,986,987,988,989,990,991,992,993,994,995,996,997,998,999,1000,1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1011,1012,1013,1014,1015,1016,1017,1018,1019,1020,1021,1022,1023,1024,1025,1026,1027,1028,1029,1030,1031,1032,1033,1034,1035,1036,1037,1038,1039,1040,1041,1042,1043,1044,1045,1046,1047,1048,1049,1050,1051,1052,1053,1054,1055,1056,1057,1058,1059,1060,1061,1062,1063,1064,1065,1066,1067,1068,1069,1070,1071,1072,1073,1074,1075,1076,1077,1078,1079,1080,1081,1082,1083,1084,1085,1086,1087,1088,1089,1090,1091,1092,1093,1094,1095,1096,1097,1098,1099,1100,1101,1102,1103,1104,1105,1106,1107,1108],"y":[306.25,299.5,303.45,296.75,304.4,298.35,304,304,301.25,302.5,302.45,305.8,306.9,307,306.85,302.15,301.9,299.25,298.6,303.5,303,304.9,304.8,301.25,301.75,303.45,302.5,300.6,300,303.45,302.8,303.4,304.9,304.95,302.9,302.85,302,298.8,290,285,290.75,290.5,288.1,288.3,288.85,286.7,289.3,289,290.25,288.75,290.1,290.25,289.9,293.7,307.25,333.25,312.5,320.75,315.9,316,329.9,328.75,329.8,324.65,317,321.1,317,null,null,323.1,323.3,329,331.25,330.3,331.5,327,325.5,327.7,328.1,326,322.6,322.4,322.5,323,324.65,315.6,314.25,313.7,null,311.25,313.35,314.5,313.55,316.75,324.75,322.85,320.4,319.8,323.65,316.5,317.4,316.4,316.35,null,313.9,311.2,315,313.15,316.85,316.25,314.75,314.9,315,310.75,313.25,313.75,314.1,315.75,317.25,321.65,325.2,322,315.25,314.1,315.9,316.5,316.25,316.5,313.35,310.85,310.4,310.7,310.9,312.2,314.8,314.7,313.8,315.05,317.15,316.8,321.7,322.25,319,317.4,322.75,318.5,319.4,317.6,323,323.25,328.1,326.75,319.65,323,321.4,320.65,322.9,322.4,326.6,328.5,326.2,328.9,335.4,339.25,335.5,335.75,337.6,333.6,null,335.25,339.3,338.4,335.75,335.45,332.7,325,326,318.75,320.2,320,322,318,321.75,318.85,318.7,315.5,315.9,319.2,328.1,328.4,328.7,330.4,328.95,326.5,323.15,324.75,324.35,330.55,326.25,326.1,326.95,325.55,325.8,326.6,326.85,325.9,324.6,326.25,326.5,325.9,326.9,325.95,325.65,326.5,326.55,326.8,325.75,324.65,325.6,324.55,324.75,323.6,322.1,323.25,322.7,324.5,325,324.55,323.75,324.1,325.05,325.75,326,330.5,331.5,330.45,326.75,327.4,323.95,322.5,324.5,322.5,322.5,320.15,316.1,316.8,316.05,317.9,318.25,321.9,321.1,323.4,323.55,325.75,324.85,null,null,324.8,326.15,327,null,327.1,326,327.8,328.9,330.9,333.9,339.45,340.75,338.8,345.3,359.6,357.25,353.25,356.5,352.75,349.5,355.25,361.75,353.8,354.4,355.4,354,347.35,338.5,335.95,337.1,337.9,340.5,337.2,338.35,335.4,329.5,333,332.4,343.7,339.25,339,343.35,351.4,345.1,337.85,338.25,339.45,337.9,342.2,343,342,341.8,341.65,344.5,349.8,347.6,348.2,350.8,349.25,350.6,351.35,352.4,352.9,344.9,345.5,null,null,333.7,335.5,336.6,335.6,336.5,340.65,338.65,338.15,340.25,343.2,340.25,340.75,339.3,341,342.45,344.15,347.25,346,344.3,344.4,342.35,344.75,345.6,341.6,null,341.55,342.15,344.6,344.25,344.9,343.8,342.75,342.5,342.75,342.05,340.3,338.6,339.4,340.85,null,341.15,341.6,342.75,343.35,343,341.85,341.4,341.5,341.5,341.85,347.55,347.5,347.95,347.4,346.5,337.3,338.5,338.7,338.9,340.5,340.75,343.25,343.8,343.55,345.5,345.65,344,343.5,343.8,344.45,346.5,350.35,347.5,347.65,346.2,345.85,348.35,346.9,347.1,353,353.5,351.75,348.5,349,350.8,353.3,351.35,375.75,360.5,358.75,358.5,360.85,360.85,361.85,394.5,386.1,391.25,384,386.4,377.25,372.5,379,381.75,384.65,null,397.3,377.8,384,386,392,395.5,407.2,404,418.25,419,412.5,414.5,407,418.75,416,413.55,413.6,415.7,423,442.75,435.15,434,432.25,434,429.45,421.2,425.5,425.5,436.9,436.5,442,439.4,435.8,428.15,431.4,431.25,426.25,426,420,420,426.8,426.6,425.4,413,409.6,409.55,407.75,404,401.5,400.3,408.5,410.25,405,408.3,409.9,407.4,407.45,406.85,409,393.25,388,391.5,387,389.5,380.4,380.75,384,382.3,390,399.6,394.3,385.25,391.2,388.6,390.5,389.2,387.25,388.75,389.7,394.6,393.7,393.4,392.5,394.15,395.35,392.75,391,null,null,391.4,389.4,390.9,null,402.4,399,401.7,399.5,401.6,402.25,409.9,408.6,414.4,415,414.5,421.25,417.4,408.5,410.6,403.55,403.35,408.7,416.5,411,407.3,406.45,402,401.75,402.6,402.7,402.95,404.4,402.9,402,395.55,397.2,396.85,392.25,392.6,397.5,403,401.95,406.7,403.1,408.7,404.4,403.7,407.65,411.45,406.5,404.85,405,406.85,408,409.25,404.65,406,406.4,405.05,405,406.6,410.3,415,411.3,415.9,421.8,419,418.5,420.25,418.65,420.55,419.8,423.2,421.5,423.3,436.5,440.25,445.5,441,null,null,454.3,446.8,453,462.6,476.6,455.75,451.75,454.5,452.15,null,464.5,456.75,457.4,456.7,454.75,460.25,459.5,460,466.7,476.5,471.35,479.95,468.6,473.6,null,459.65,447.9,453.35,451.75,443.4,449.3,453.35,450.25,454.7,454.4,452.05,456.65,456.4,460.8,450.35,452.75,448.25,451.1,452.25,443.6,438.1,443,439,441.4,446,447.1,449.5,447.4,443,443.1,444.8,442.15,445.3,444.25,443.7,447.15,448.25,452.9,452.5,449.65,452.5,454.45,454.75,454,453.1,454.2,459.5,457.2,464.2,473.25,476,469.85,468.85,464,459.5,463.2,461,462,457.4,454.8,454.9,457.65,457.4,454.1,455.8,458.5,457.4,458.25,455.9,null,453.1,456.55,462.15,464.4,463.35,462.75,458,461,460.9,456.6,458.35,458.5,458.8,461.35,458.85,463.15,461.05,463.85,461,460.9,458.9,459.15,454.1,455,455.15,456.85,458.55,458.25,461.75,461.85,459.65,459.45,461.75,464.25,479.5,481.6,466.65,469.8,472.65,474.85,473.45,479.65,474.05,468,469.95,470.1,467,459.7,458.6,463.5,458.75,461.3,463,464.2,461.75,463.55,464.2,465.8,466.25,468.25,476.95,478.75,477.65,477.8,493.9,486.9,490,488.95,485.75,480.9,483,485.3,484.5,495,502.75,593.7,487.05,487.75,484.55,481,481.6,483.25,483.75,null,null,489.55,486.9,486.5,null,484.1,477.3,481.6,483.95,479.5,485.3,482.05,481.4,480.9,484.8,475.85,476.75,477.75,476.5,477.85,471.4,471.4,469.4,468,465.25,454.65,455.15,447.1,437.6,444.15,443.05,439.25,443.8,440.2,440.3,443.6,444.25,444.4,446.25,443.45,445.1,443.95,438,433.95,432.65,423.75,429.15,431.55,429.15,430.75,436,435.7,436.1,437.25,444.1,441.9,442.25,447.15,445.35,442.8,446.5,449.4,450,453.9,451.5,453.1,454.7,454,458,null,null,456,450.8,446.25,448.6,450.15,450.2,448.5,447,453.85,457.55,456.55,458,454,453.15,449.75,448.25,449.1,452.15,449.75,null,444.3,441.95,445.35,445.95,443.6,447.1,449.35,448.65,451.05,453.4,453.15,452.7,456.65,459.5,460.25,458.6,458.6,453,452.5,null,454,457,454.6,464.85,464.1,463.4,458.75,455,457.1,450.5,450.8,450.3,452.65,449.8,453.9,451.7,449.8,447.6,447,442,443.85,434.9,436.85,436.5,437.15,437.4,438.1,439.15,438.9,439.65,434.5,436.2,439.05,438.1,437.65,437.25,445,443.2,443.2,442.2,430.15,431.7,428.75,432.7,436.4,432.9,431.25,433.4,431.45,431.85,428.25,426.95,429,428.4,431.15,432,429,430.2,432.4,429.7,432.7,432.1,434.8,433.75,null,429.4,426.35,430.3,430.3,427,427.65,427,428,428.9,418,420.8,421.9,421.5,417.3,409,410.4,401.6,399.6,399.3,389.05,397,397.65,398.6,396.15,394.2,397.35,397.25,403,404.25,406.25,408,404.7,408.6,406.5,411.15,413.05,410.8,411.4,410.55,406.3,406.6,407.5,407.15,407.3,412.3,411,412.5,422.9,419.5,422,421.85,419.5,422.25,420.75,420.65,422.8,422.6,423.3,419.75,416.6,416.1,417.95,419.85,422.6,421.4,422.1,421.3,425.5,423.8,430.4,429,425.35,423.3,422.2,421,420.05,419.6,421.4,412.6,413.65,413.2,413.85,415.6,417.55,null,null,413.65,413.1,410.15,null,413.6,410.5,408,408.45,404.45,405.5,403.5,404.85,403.5,401.75,402.1,402.85,402.3,404.5,407.75,407.8,404.75,406,402.25,394.3,394.85,392,392.7,390.85,390.25,391.45,390.4,394.1,393.8,386.7,385.65,381.7,384.25,378.95,382.15,382.75,386,389,389.25,390.75,386.75,386.1,384.1,384.1,388.4,386.3,393.1,392.5,397,393.1,394.3,394.45,391,389.25,395.3,394.1,393.4,396,null,null,391.25,383.3,384,382.3],"text":["x: 1 y: 306.25","x: 2 y: 299.50","x: 3 y: 303.45","x: 4 y: 296.75","x: 5 y: 304.40","x: 6 y: 298.35","x: 7 y: 304.00","x: 8 y: 304.00","x: 9 y: 301.25","x: 10 y: 302.50","x: 11 y: 302.45","x: 12 y: 305.80","x: 13 y: 306.90","x: 14 y: 307.00","x: 15 y: 306.85","x: 16 y: 302.15","x: 17 y: 301.90","x: 18 y: 299.25","x: 19 y: 298.60","x: 20 y: 303.50","x: 21 y: 303.00","x: 22 y: 304.90","x: 23 y: 304.80","x: 24 y: 301.25","x: 25 y: 301.75","x: 26 y: 303.45","x: 27 y: 302.50","x: 28 y: 300.60","x: 29 y: 300.00","x: 30 y: 303.45","x: 31 y: 302.80","x: 32 y: 303.40","x: 33 y: 304.90","x: 34 y: 304.95","x: 35 y: 302.90","x: 36 y: 302.85","x: 37 y: 302.00","x: 38 y: 298.80","x: 39 y: 290.00","x: 40 y: 285.00","x: 41 y: 290.75","x: 42 y: 290.50","x: 43 y: 288.10","x: 44 y: 288.30","x: 45 y: 288.85","x: 46 y: 286.70","x: 47 y: 289.30","x: 48 y: 289.00","x: 49 y: 290.25","x: 50 y: 288.75","x: 51 y: 290.10","x: 52 y: 290.25","x: 53 y: 289.90","x: 54 y: 293.70","x: 55 y: 307.25","x: 56 y: 333.25","x: 57 y: 312.50","x: 58 y: 320.75","x: 59 y: 315.90","x: 60 y: 316.00","x: 61 y: 329.90","x: 62 y: 328.75","x: 63 y: 329.80","x: 64 y: 324.65","x: 65 y: 317.00","x: 66 y: 321.10","x: 67 y: 317.00","x: 68 y: NA","x: 69 y: NA","x: 70 y: 323.10","x: 71 y: 323.30","x: 72 y: 329.00","x: 73 y: 331.25","x: 74 y: 330.30","x: 75 y: 331.50","x: 76 y: 327.00","x: 77 y: 325.50","x: 78 y: 327.70","x: 79 y: 328.10","x: 80 y: 326.00","x: 81 y: 322.60","x: 82 y: 322.40","x: 83 y: 322.50","x: 84 y: 323.00","x: 85 y: 324.65","x: 86 y: 315.60","x: 87 y: 314.25","x: 88 y: 313.70","x: 89 y: NA","x: 90 y: 311.25","x: 91 y: 313.35","x: 92 y: 314.50","x: 93 y: 313.55","x: 94 y: 316.75","x: 95 y: 324.75","x: 96 y: 322.85","x: 97 y: 320.40","x: 98 y: 319.80","x: 99 y: 323.65","x: 100 y: 316.50","x: 101 y: 317.40","x: 102 y: 316.40","x: 103 y: 316.35","x: 104 y: NA","x: 105 y: 313.90","x: 106 y: 311.20","x: 107 y: 315.00","x: 108 y: 313.15","x: 109 y: 316.85","x: 110 y: 316.25","x: 111 y: 314.75","x: 112 y: 314.90","x: 113 y: 315.00","x: 114 y: 310.75","x: 115 y: 313.25","x: 116 y: 313.75","x: 117 y: 314.10","x: 118 y: 315.75","x: 119 y: 317.25","x: 120 y: 321.65","x: 121 y: 325.20","x: 122 y: 322.00","x: 123 y: 315.25","x: 124 y: 314.10","x: 125 y: 315.90","x: 126 y: 316.50","x: 127 y: 316.25","x: 128 y: 316.50","x: 129 y: 313.35","x: 130 y: 310.85","x: 131 y: 310.40","x: 132 y: 310.70","x: 133 y: 310.90","x: 134 y: 312.20","x: 135 y: 314.80","x: 136 y: 314.70","x: 137 y: 313.80","x: 138 y: 315.05","x: 139 y: 317.15","x: 140 y: 316.80","x: 141 y: 321.70","x: 142 y: 322.25","x: 143 y: 319.00","x: 144 y: 317.40","x: 145 y: 322.75","x: 146 y: 318.50","x: 147 y: 319.40","x: 148 y: 317.60","x: 149 y: 323.00","x: 150 y: 323.25","x: 151 y: 328.10","x: 152 y: 326.75","x: 153 y: 319.65","x: 154 y: 323.00","x: 155 y: 321.40","x: 156 y: 320.65","x: 157 y: 322.90","x: 158 y: 322.40","x: 159 y: 326.60","x: 160 y: 328.50","x: 161 y: 326.20","x: 162 y: 328.90","x: 163 y: 335.40","x: 164 y: 339.25","x: 165 y: 335.50","x: 166 y: 335.75","x: 167 y: 337.60","x: 168 y: 333.60","x: 169 y: NA","x: 170 y: 335.25","x: 171 y: 339.30","x: 172 y: 338.40","x: 173 y: 335.75","x: 174 y: 335.45","x: 175 y: 332.70","x: 176 y: 325.00","x: 177 y: 326.00","x: 178 y: 318.75","x: 179 y: 320.20","x: 180 y: 320.00","x: 181 y: 322.00","x: 182 y: 318.00","x: 183 y: 321.75","x: 184 y: 318.85","x: 185 y: 318.70","x: 186 y: 315.50","x: 187 y: 315.90","x: 188 y: 319.20","x: 189 y: 328.10","x: 190 y: 328.40","x: 191 y: 328.70","x: 192 y: 330.40","x: 193 y: 328.95","x: 194 y: 326.50","x: 195 y: 323.15","x: 196 y: 324.75","x: 197 y: 324.35","x: 198 y: 330.55","x: 199 y: 326.25","x: 200 y: 326.10","x: 201 y: 326.95","x: 202 y: 325.55","x: 203 y: 325.80","x: 204 y: 326.60","x: 205 y: 326.85","x: 206 y: 325.90","x: 207 y: 324.60","x: 208 y: 326.25","x: 209 y: 326.50","x: 210 y: 325.90","x: 211 y: 326.90","x: 212 y: 325.95","x: 213 y: 325.65","x: 214 y: 326.50","x: 215 y: 326.55","x: 216 y: 326.80","x: 217 y: 325.75","x: 218 y: 324.65","x: 219 y: 325.60","x: 220 y: 324.55","x: 221 y: 324.75","x: 222 y: 323.60","x: 223 y: 322.10","x: 224 y: 323.25","x: 225 y: 322.70","x: 226 y: 324.50","x: 227 y: 325.00","x: 228 y: 324.55","x: 229 y: 323.75","x: 230 y: 324.10","x: 231 y: 325.05","x: 232 y: 325.75","x: 233 y: 326.00","x: 234 y: 330.50","x: 235 y: 331.50","x: 236 y: 330.45","x: 237 y: 326.75","x: 238 y: 327.40","x: 239 y: 323.95","x: 240 y: 322.50","x: 241 y: 324.50","x: 242 y: 322.50","x: 243 y: 322.50","x: 244 y: 320.15","x: 245 y: 316.10","x: 246 y: 316.80","x: 247 y: 316.05","x: 248 y: 317.90","x: 249 y: 318.25","x: 250 y: 321.90","x: 251 y: 321.10","x: 252 y: 323.40","x: 253 y: 323.55","x: 254 y: 325.75","x: 255 y: 324.85","x: 256 y: NA","x: 257 y: NA","x: 258 y: 324.80","x: 259 y: 326.15","x: 260 y: 327.00","x: 261 y: NA","x: 262 y: 327.10","x: 263 y: 326.00","x: 264 y: 327.80","x: 265 y: 328.90","x: 266 y: 330.90","x: 267 y: 333.90","x: 268 y: 339.45","x: 269 y: 340.75","x: 270 y: 338.80","x: 271 y: 345.30","x: 272 y: 359.60","x: 273 y: 357.25","x: 274 y: 353.25","x: 275 y: 356.50","x: 276 y: 352.75","x: 277 y: 349.50","x: 278 y: 355.25","x: 279 y: 361.75","x: 280 y: 353.80","x: 281 y: 354.40","x: 282 y: 355.40","x: 283 y: 354.00","x: 284 y: 347.35","x: 285 y: 338.50","x: 286 y: 335.95","x: 287 y: 337.10","x: 288 y: 337.90","x: 289 y: 340.50","x: 290 y: 337.20","x: 291 y: 338.35","x: 292 y: 335.40","x: 293 y: 329.50","x: 294 y: 333.00","x: 295 y: 332.40","x: 296 y: 343.70","x: 297 y: 339.25","x: 298 y: 339.00","x: 299 y: 343.35","x: 300 y: 351.40","x: 301 y: 345.10","x: 302 y: 337.85","x: 303 y: 338.25","x: 304 y: 339.45","x: 305 y: 337.90","x: 306 y: 342.20","x: 307 y: 343.00","x: 308 y: 342.00","x: 309 y: 341.80","x: 310 y: 341.65","x: 311 y: 344.50","x: 312 y: 349.80","x: 313 y: 347.60","x: 314 y: 348.20","x: 315 y: 350.80","x: 316 y: 349.25","x: 317 y: 350.60","x: 318 y: 351.35","x: 319 y: 352.40","x: 320 y: 352.90","x: 321 y: 344.90","x: 322 y: 345.50","x: 323 y: NA","x: 324 y: NA","x: 325 y: 333.70","x: 326 y: 335.50","x: 327 y: 336.60","x: 328 y: 335.60","x: 329 y: 336.50","x: 330 y: 340.65","x: 331 y: 338.65","x: 332 y: 338.15","x: 333 y: 340.25","x: 334 y: 343.20","x: 335 y: 340.25","x: 336 y: 340.75","x: 337 y: 339.30","x: 338 y: 341.00","x: 339 y: 342.45","x: 340 y: 344.15","x: 341 y: 347.25","x: 342 y: 346.00","x: 343 y: 344.30","x: 344 y: 344.40","x: 345 y: 342.35","x: 346 y: 344.75","x: 347 y: 345.60","x: 348 y: 341.60","x: 349 y: NA","x: 350 y: 341.55","x: 351 y: 342.15","x: 352 y: 344.60","x: 353 y: 344.25","x: 354 y: 344.90","x: 355 y: 343.80","x: 356 y: 342.75","x: 357 y: 342.50","x: 358 y: 342.75","x: 359 y: 342.05","x: 360 y: 340.30","x: 361 y: 338.60","x: 362 y: 339.40","x: 363 y: 340.85","x: 364 y: NA","x: 365 y: 341.15","x: 366 y: 341.60","x: 367 y: 342.75","x: 368 y: 343.35","x: 369 y: 343.00","x: 370 y: 341.85","x: 371 y: 341.40","x: 372 y: 341.50","x: 373 y: 341.50","x: 374 y: 341.85","x: 375 y: 347.55","x: 376 y: 347.50","x: 377 y: 347.95","x: 378 y: 347.40","x: 379 y: 346.50","x: 380 y: 337.30","x: 381 y: 338.50","x: 382 y: 338.70","x: 383 y: 338.90","x: 384 y: 340.50","x: 385 y: 340.75","x: 386 y: 343.25","x: 387 y: 343.80","x: 388 y: 343.55","x: 389 y: 345.50","x: 390 y: 345.65","x: 391 y: 344.00","x: 392 y: 343.50","x: 393 y: 343.80","x: 394 y: 344.45","x: 395 y: 346.50","x: 396 y: 350.35","x: 397 y: 347.50","x: 398 y: 347.65","x: 399 y: 346.20","x: 400 y: 345.85","x: 401 y: 348.35","x: 402 y: 346.90","x: 403 y: 347.10","x: 404 y: 353.00","x: 405 y: 353.50","x: 406 y: 351.75","x: 407 y: 348.50","x: 408 y: 349.00","x: 409 y: 350.80","x: 410 y: 353.30","x: 411 y: 351.35","x: 412 y: 375.75","x: 413 y: 360.50","x: 414 y: 358.75","x: 415 y: 358.50","x: 416 y: 360.85","x: 417 y: 360.85","x: 418 y: 361.85","x: 419 y: 394.50","x: 420 y: 386.10","x: 421 y: 391.25","x: 422 y: 384.00","x: 423 y: 386.40","x: 424 y: 377.25","x: 425 y: 372.50","x: 426 y: 379.00","x: 427 y: 381.75","x: 428 y: 384.65","x: 429 y: NA","x: 430 y: 397.30","x: 431 y: 377.80","x: 432 y: 384.00","x: 433 y: 386.00","x: 434 y: 392.00","x: 435 y: 395.50","x: 436 y: 407.20","x: 437 y: 404.00","x: 438 y: 418.25","x: 439 y: 419.00","x: 440 y: 412.50","x: 441 y: 414.50","x: 442 y: 407.00","x: 443 y: 418.75","x: 444 y: 416.00","x: 445 y: 413.55","x: 446 y: 413.60","x: 447 y: 415.70","x: 448 y: 423.00","x: 449 y: 442.75","x: 450 y: 435.15","x: 451 y: 434.00","x: 452 y: 432.25","x: 453 y: 434.00","x: 454 y: 429.45","x: 455 y: 421.20","x: 456 y: 425.50","x: 457 y: 425.50","x: 458 y: 436.90","x: 459 y: 436.50","x: 460 y: 442.00","x: 461 y: 439.40","x: 462 y: 435.80","x: 463 y: 428.15","x: 464 y: 431.40","x: 465 y: 431.25","x: 466 y: 426.25","x: 467 y: 426.00","x: 468 y: 420.00","x: 469 y: 420.00","x: 470 y: 426.80","x: 471 y: 426.60","x: 472 y: 425.40","x: 473 y: 413.00","x: 474 y: 409.60","x: 475 y: 409.55","x: 476 y: 407.75","x: 477 y: 404.00","x: 478 y: 401.50","x: 479 y: 400.30","x: 480 y: 408.50","x: 481 y: 410.25","x: 482 y: 405.00","x: 483 y: 408.30","x: 484 y: 409.90","x: 485 y: 407.40","x: 486 y: 407.45","x: 487 y: 406.85","x: 488 y: 409.00","x: 489 y: 393.25","x: 490 y: 388.00","x: 491 y: 391.50","x: 492 y: 387.00","x: 493 y: 389.50","x: 494 y: 380.40","x: 495 y: 380.75","x: 496 y: 384.00","x: 497 y: 382.30","x: 498 y: 390.00","x: 499 y: 399.60","x: 500 y: 394.30","x: 501 y: 385.25","x: 502 y: 391.20","x: 503 y: 388.60","x: 504 y: 390.50","x: 505 y: 389.20","x: 506 y: 387.25","x: 507 y: 388.75","x: 508 y: 389.70","x: 509 y: 394.60","x: 510 y: 393.70","x: 511 y: 393.40","x: 512 y: 392.50","x: 513 y: 394.15","x: 514 y: 395.35","x: 515 y: 392.75","x: 516 y: 391.00","x: 517 y: NA","x: 518 y: NA","x: 519 y: 391.40","x: 520 y: 389.40","x: 521 y: 390.90","x: 522 y: NA","x: 523 y: 402.40","x: 524 y: 399.00","x: 525 y: 401.70","x: 526 y: 399.50","x: 527 y: 401.60","x: 528 y: 402.25","x: 529 y: 409.90","x: 530 y: 408.60","x: 531 y: 414.40","x: 532 y: 415.00","x: 533 y: 414.50","x: 534 y: 421.25","x: 535 y: 417.40","x: 536 y: 408.50","x: 537 y: 410.60","x: 538 y: 403.55","x: 539 y: 403.35","x: 540 y: 408.70","x: 541 y: 416.50","x: 542 y: 411.00","x: 543 y: 407.30","x: 544 y: 406.45","x: 545 y: 402.00","x: 546 y: 401.75","x: 547 y: 402.60","x: 548 y: 402.70","x: 549 y: 402.95","x: 550 y: 404.40","x: 551 y: 402.90","x: 552 y: 402.00","x: 553 y: 395.55","x: 554 y: 397.20","x: 555 y: 396.85","x: 556 y: 392.25","x: 557 y: 392.60","x: 558 y: 397.50","x: 559 y: 403.00","x: 560 y: 401.95","x: 561 y: 406.70","x: 562 y: 403.10","x: 563 y: 408.70","x: 564 y: 404.40","x: 565 y: 403.70","x: 566 y: 407.65","x: 567 y: 411.45","x: 568 y: 406.50","x: 569 y: 404.85","x: 570 y: 405.00","x: 571 y: 406.85","x: 572 y: 408.00","x: 573 y: 409.25","x: 574 y: 404.65","x: 575 y: 406.00","x: 576 y: 406.40","x: 577 y: 405.05","x: 578 y: 405.00","x: 579 y: 406.60","x: 580 y: 410.30","x: 581 y: 415.00","x: 582 y: 411.30","x: 583 y: 415.90","x: 584 y: 421.80","x: 585 y: 419.00","x: 586 y: 418.50","x: 587 y: 420.25","x: 588 y: 418.65","x: 589 y: 420.55","x: 590 y: 419.80","x: 591 y: 423.20","x: 592 y: 421.50","x: 593 y: 423.30","x: 594 y: 436.50","x: 595 y: 440.25","x: 596 y: 445.50","x: 597 y: 441.00","x: 598 y: NA","x: 599 y: NA","x: 600 y: 454.30","x: 601 y: 446.80","x: 602 y: 453.00","x: 603 y: 462.60","x: 604 y: 476.60","x: 605 y: 455.75","x: 606 y: 451.75","x: 607 y: 454.50","x: 608 y: 452.15","x: 609 y: NA","x: 610 y: 464.50","x: 611 y: 456.75","x: 612 y: 457.40","x: 613 y: 456.70","x: 614 y: 454.75","x: 615 y: 460.25","x: 616 y: 459.50","x: 617 y: 460.00","x: 618 y: 466.70","x: 619 y: 476.50","x: 620 y: 471.35","x: 621 y: 479.95","x: 622 y: 468.60","x: 623 y: 473.60","x: 624 y: NA","x: 625 y: 459.65","x: 626 y: 447.90","x: 627 y: 453.35","x: 628 y: 451.75","x: 629 y: 443.40","x: 630 y: 449.30","x: 631 y: 453.35","x: 632 y: 450.25","x: 633 y: 454.70","x: 634 y: 454.40","x: 635 y: 452.05","x: 636 y: 456.65","x: 637 y: 456.40","x: 638 y: 460.80","x: 639 y: 450.35","x: 640 y: 452.75","x: 641 y: 448.25","x: 642 y: 451.10","x: 643 y: 452.25","x: 644 y: 443.60","x: 645 y: 438.10","x: 646 y: 443.00","x: 647 y: 439.00","x: 648 y: 441.40","x: 649 y: 446.00","x: 650 y: 447.10","x: 651 y: 449.50","x: 652 y: 447.40","x: 653 y: 443.00","x: 654 y: 443.10","x: 655 y: 444.80","x: 656 y: 442.15","x: 657 y: 445.30","x: 658 y: 444.25","x: 659 y: 443.70","x: 660 y: 447.15","x: 661 y: 448.25","x: 662 y: 452.90","x: 663 y: 452.50","x: 664 y: 449.65","x: 665 y: 452.50","x: 666 y: 454.45","x: 667 y: 454.75","x: 668 y: 454.00","x: 669 y: 453.10","x: 670 y: 454.20","x: 671 y: 459.50","x: 672 y: 457.20","x: 673 y: 464.20","x: 674 y: 473.25","x: 675 y: 476.00","x: 676 y: 469.85","x: 677 y: 468.85","x: 678 y: 464.00","x: 679 y: 459.50","x: 680 y: 463.20","x: 681 y: 461.00","x: 682 y: 462.00","x: 683 y: 457.40","x: 684 y: 454.80","x: 685 y: 454.90","x: 686 y: 457.65","x: 687 y: 457.40","x: 688 y: 454.10","x: 689 y: 455.80","x: 690 y: 458.50","x: 691 y: 457.40","x: 692 y: 458.25","x: 693 y: 455.90","x: 694 y: NA","x: 695 y: 453.10","x: 696 y: 456.55","x: 697 y: 462.15","x: 698 y: 464.40","x: 699 y: 463.35","x: 700 y: 462.75","x: 701 y: 458.00","x: 702 y: 461.00","x: 703 y: 460.90","x: 704 y: 456.60","x: 705 y: 458.35","x: 706 y: 458.50","x: 707 y: 458.80","x: 708 y: 461.35","x: 709 y: 458.85","x: 710 y: 463.15","x: 711 y: 461.05","x: 712 y: 463.85","x: 713 y: 461.00","x: 714 y: 460.90","x: 715 y: 458.90","x: 716 y: 459.15","x: 717 y: 454.10","x: 718 y: 455.00","x: 719 y: 455.15","x: 720 y: 456.85","x: 721 y: 458.55","x: 722 y: 458.25","x: 723 y: 461.75","x: 724 y: 461.85","x: 725 y: 459.65","x: 726 y: 459.45","x: 727 y: 461.75","x: 728 y: 464.25","x: 729 y: 479.50","x: 730 y: 481.60","x: 731 y: 466.65","x: 732 y: 469.80","x: 733 y: 472.65","x: 734 y: 474.85","x: 735 y: 473.45","x: 736 y: 479.65","x: 737 y: 474.05","x: 738 y: 468.00","x: 739 y: 469.95","x: 740 y: 470.10","x: 741 y: 467.00","x: 742 y: 459.70","x: 743 y: 458.60","x: 744 y: 463.50","x: 745 y: 458.75","x: 746 y: 461.30","x: 747 y: 463.00","x: 748 y: 464.20","x: 749 y: 461.75","x: 750 y: 463.55","x: 751 y: 464.20","x: 752 y: 465.80","x: 753 y: 466.25","x: 754 y: 468.25","x: 755 y: 476.95","x: 756 y: 478.75","x: 757 y: 477.65","x: 758 y: 477.80","x: 759 y: 493.90","x: 760 y: 486.90","x: 761 y: 490.00","x: 762 y: 488.95","x: 763 y: 485.75","x: 764 y: 480.90","x: 765 y: 483.00","x: 766 y: 485.30","x: 767 y: 484.50","x: 768 y: 495.00","x: 769 y: 502.75","x: 770 y: 593.70","x: 771 y: 487.05","x: 772 y: 487.75","x: 773 y: 484.55","x: 774 y: 481.00","x: 775 y: 481.60","x: 776 y: 483.25","x: 777 y: 483.75","x: 778 y: NA","x: 779 y: NA","x: 780 y: 489.55","x: 781 y: 486.90","x: 782 y: 486.50","x: 783 y: NA","x: 784 y: 484.10","x: 785 y: 477.30","x: 786 y: 481.60","x: 787 y: 483.95","x: 788 y: 479.50","x: 789 y: 485.30","x: 790 y: 482.05","x: 791 y: 481.40","x: 792 y: 480.90","x: 793 y: 484.80","x: 794 y: 475.85","x: 795 y: 476.75","x: 796 y: 477.75","x: 797 y: 476.50","x: 798 y: 477.85","x: 799 y: 471.40","x: 800 y: 471.40","x: 801 y: 469.40","x: 802 y: 468.00","x: 803 y: 465.25","x: 804 y: 454.65","x: 805 y: 455.15","x: 806 y: 447.10","x: 807 y: 437.60","x: 808 y: 444.15","x: 809 y: 443.05","x: 810 y: 439.25","x: 811 y: 443.80","x: 812 y: 440.20","x: 813 y: 440.30","x: 814 y: 443.60","x: 815 y: 444.25","x: 816 y: 444.40","x: 817 y: 446.25","x: 818 y: 443.45","x: 819 y: 445.10","x: 820 y: 443.95","x: 821 y: 438.00","x: 822 y: 433.95","x: 823 y: 432.65","x: 824 y: 423.75","x: 825 y: 429.15","x: 826 y: 431.55","x: 827 y: 429.15","x: 828 y: 430.75","x: 829 y: 436.00","x: 830 y: 435.70","x: 831 y: 436.10","x: 832 y: 437.25","x: 833 y: 444.10","x: 834 y: 441.90","x: 835 y: 442.25","x: 836 y: 447.15","x: 837 y: 445.35","x: 838 y: 442.80","x: 839 y: 446.50","x: 840 y: 449.40","x: 841 y: 450.00","x: 842 y: 453.90","x: 843 y: 451.50","x: 844 y: 453.10","x: 845 y: 454.70","x: 846 y: 454.00","x: 847 y: 458.00","x: 848 y: NA","x: 849 y: NA","x: 850 y: 456.00","x: 851 y: 450.80","x: 852 y: 446.25","x: 853 y: 448.60","x: 854 y: 450.15","x: 855 y: 450.20","x: 856 y: 448.50","x: 857 y: 447.00","x: 858 y: 453.85","x: 859 y: 457.55","x: 860 y: 456.55","x: 861 y: 458.00","x: 862 y: 454.00","x: 863 y: 453.15","x: 864 y: 449.75","x: 865 y: 448.25","x: 866 y: 449.10","x: 867 y: 452.15","x: 868 y: 449.75","x: 869 y: NA","x: 870 y: 444.30","x: 871 y: 441.95","x: 872 y: 445.35","x: 873 y: 445.95","x: 874 y: 443.60","x: 875 y: 447.10","x: 876 y: 449.35","x: 877 y: 448.65","x: 878 y: 451.05","x: 879 y: 453.40","x: 880 y: 453.15","x: 881 y: 452.70","x: 882 y: 456.65","x: 883 y: 459.50","x: 884 y: 460.25","x: 885 y: 458.60","x: 886 y: 458.60","x: 887 y: 453.00","x: 888 y: 452.50","x: 889 y: NA","x: 890 y: 454.00","x: 891 y: 457.00","x: 892 y: 454.60","x: 893 y: 464.85","x: 894 y: 464.10","x: 895 y: 463.40","x: 896 y: 458.75","x: 897 y: 455.00","x: 898 y: 457.10","x: 899 y: 450.50","x: 900 y: 450.80","x: 901 y: 450.30","x: 902 y: 452.65","x: 903 y: 449.80","x: 904 y: 453.90","x: 905 y: 451.70","x: 906 y: 449.80","x: 907 y: 447.60","x: 908 y: 447.00","x: 909 y: 442.00","x: 910 y: 443.85","x: 911 y: 434.90","x: 912 y: 436.85","x: 913 y: 436.50","x: 914 y: 437.15","x: 915 y: 437.40","x: 916 y: 438.10","x: 917 y: 439.15","x: 918 y: 438.90","x: 919 y: 439.65","x: 920 y: 434.50","x: 921 y: 436.20","x: 922 y: 439.05","x: 923 y: 438.10","x: 924 y: 437.65","x: 925 y: 437.25","x: 926 y: 445.00","x: 927 y: 443.20","x: 928 y: 443.20","x: 929 y: 442.20","x: 930 y: 430.15","x: 931 y: 431.70","x: 932 y: 428.75","x: 933 y: 432.70","x: 934 y: 436.40","x: 935 y: 432.90","x: 936 y: 431.25","x: 937 y: 433.40","x: 938 y: 431.45","x: 939 y: 431.85","x: 940 y: 428.25","x: 941 y: 426.95","x: 942 y: 429.00","x: 943 y: 428.40","x: 944 y: 431.15","x: 945 y: 432.00","x: 946 y: 429.00","x: 947 y: 430.20","x: 948 y: 432.40","x: 949 y: 429.70","x: 950 y: 432.70","x: 951 y: 432.10","x: 952 y: 434.80","x: 953 y: 433.75","x: 954 y: NA","x: 955 y: 429.40","x: 956 y: 426.35","x: 957 y: 430.30","x: 958 y: 430.30","x: 959 y: 427.00","x: 960 y: 427.65","x: 961 y: 427.00","x: 962 y: 428.00","x: 963 y: 428.90","x: 964 y: 418.00","x: 965 y: 420.80","x: 966 y: 421.90","x: 967 y: 421.50","x: 968 y: 417.30","x: 969 y: 409.00","x: 970 y: 410.40","x: 971 y: 401.60","x: 972 y: 399.60","x: 973 y: 399.30","x: 974 y: 389.05","x: 975 y: 397.00","x: 976 y: 397.65","x: 977 y: 398.60","x: 978 y: 396.15","x: 979 y: 394.20","x: 980 y: 397.35","x: 981 y: 397.25","x: 982 y: 403.00","x: 983 y: 404.25","x: 984 y: 406.25","x: 985 y: 408.00","x: 986 y: 404.70","x: 987 y: 408.60","x: 988 y: 406.50","x: 989 y: 411.15","x: 990 y: 413.05","x: 991 y: 410.80","x: 992 y: 411.40","x: 993 y: 410.55","x: 994 y: 406.30","x: 995 y: 406.60","x: 996 y: 407.50","x: 997 y: 407.15","x: 998 y: 407.30","x: 999 y: 412.30","x: 1000 y: 411.00","x: 1001 y: 412.50","x: 1002 y: 422.90","x: 1003 y: 419.50","x: 1004 y: 422.00","x: 1005 y: 421.85","x: 1006 y: 419.50","x: 1007 y: 422.25","x: 1008 y: 420.75","x: 1009 y: 420.65","x: 1010 y: 422.80","x: 1011 y: 422.60","x: 1012 y: 423.30","x: 1013 y: 419.75","x: 1014 y: 416.60","x: 1015 y: 416.10","x: 1016 y: 417.95","x: 1017 y: 419.85","x: 1018 y: 422.60","x: 1019 y: 421.40","x: 1020 y: 422.10","x: 1021 y: 421.30","x: 1022 y: 425.50","x: 1023 y: 423.80","x: 1024 y: 430.40","x: 1025 y: 429.00","x: 1026 y: 425.35","x: 1027 y: 423.30","x: 1028 y: 422.20","x: 1029 y: 421.00","x: 1030 y: 420.05","x: 1031 y: 419.60","x: 1032 y: 421.40","x: 1033 y: 412.60","x: 1034 y: 413.65","x: 1035 y: 413.20","x: 1036 y: 413.85","x: 1037 y: 415.60","x: 1038 y: 417.55","x: 1039 y: NA","x: 1040 y: NA","x: 1041 y: 413.65","x: 1042 y: 413.10","x: 1043 y: 410.15","x: 1044 y: NA","x: 1045 y: 413.60","x: 1046 y: 410.50","x: 1047 y: 408.00","x: 1048 y: 408.45","x: 1049 y: 404.45","x: 1050 y: 405.50","x: 1051 y: 403.50","x: 1052 y: 404.85","x: 1053 y: 403.50","x: 1054 y: 401.75","x: 1055 y: 402.10","x: 1056 y: 402.85","x: 1057 y: 402.30","x: 1058 y: 404.50","x: 1059 y: 407.75","x: 1060 y: 407.80","x: 1061 y: 404.75","x: 1062 y: 406.00","x: 1063 y: 402.25","x: 1064 y: 394.30","x: 1065 y: 394.85","x: 1066 y: 392.00","x: 1067 y: 392.70","x: 1068 y: 390.85","x: 1069 y: 390.25","x: 1070 y: 391.45","x: 1071 y: 390.40","x: 1072 y: 394.10","x: 1073 y: 393.80","x: 1074 y: 386.70","x: 1075 y: 385.65","x: 1076 y: 381.70","x: 1077 y: 384.25","x: 1078 y: 378.95","x: 1079 y: 382.15","x: 1080 y: 382.75","x: 1081 y: 386.00","x: 1082 y: 389.00","x: 1083 y: 389.25","x: 1084 y: 390.75","x: 1085 y: 386.75","x: 1086 y: 386.10","x: 1087 y: 384.10","x: 1088 y: 384.10","x: 1089 y: 388.40","x: 1090 y: 386.30","x: 1091 y: 393.10","x: 1092 y: 392.50","x: 1093 y: 397.00","x: 1094 y: 393.10","x: 1095 y: 394.30","x: 1096 y: 394.45","x: 1097 y: 391.00","x: 1098 y: 389.25","x: 1099 y: 395.30","x: 1100 y: 394.10","x: 1101 y: 393.40","x: 1102 y: 396.00","x: 1103 y: NA","x: 1104 y: NA","x: 1105 y: 391.25","x: 1106 y: 383.30","x: 1107 y: 384.00","x: 1108 y: 382.30"],"type":"scatter","mode":"lines","line":{"width":1.88976377952756,"color":"rgba(0,0,0,1)","dash":"solid"},"hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":31.9402241594022,"r":7.30593607305936,"b":45.8945620589456,"l":43.1050228310502},"plot_bgcolor":"rgba(235,235,235,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-54.35,1163.35],"tickmode":"array","ticktext":["0","300","600","900"],"tickvals":[7.105427357601e-15,300,600,900],"categoryorder":"array","categoryarray":["0","300","600","900"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(255,255,255,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"y","title":{"text":"x","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[269.565,609.135],"tickmode":"array","ticktext":["300","400","500","600"],"tickvals":[300,400,500,600],"categoryorder":"array","categoryarray":["300","400","500","600"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(255,255,255,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"x","title":{"text":"y","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":null,"line":{"color":null,"width":0,"linetype":[]},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":false,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":1.88976377952756,"font":{"color":"rgba(0,0,0,1)","family":"","size":11.689497716895}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","showSendToCloud":false},"source":"A","attrs":{"1db359f89428":{"x":{},"y":{},"type":"scatter"}},"cur_data":"1db359f89428","visdat":{"1db359f89428":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

???

---

# Connection with ggplot2

```r
p <- ggplot(fortify(forecast::gold), aes(x, y)) + geom_line()
gg <- ggplotly(p)
gg <- style(gg, line = list(color = 'gold'), hoverinfo = "y", traces = 1)
gg
```

<div id="htmlwidget-ee86d24ffd5bb2135bd4" style="width:864px;height:396px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-ee86d24ffd5bb2135bd4">{"x":{"data":[{"x":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175,176,177,178,179,180,181,182,183,184,185,186,187,188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,204,205,206,207,208,209,210,211,212,213,214,215,216,217,218,219,220,221,222,223,224,225,226,227,228,229,230,231,232,233,234,235,236,237,238,239,240,241,242,243,244,245,246,247,248,249,250,251,252,253,254,255,256,257,258,259,260,261,262,263,264,265,266,267,268,269,270,271,272,273,274,275,276,277,278,279,280,281,282,283,284,285,286,287,288,289,290,291,292,293,294,295,296,297,298,299,300,301,302,303,304,305,306,307,308,309,310,311,312,313,314,315,316,317,318,319,320,321,322,323,324,325,326,327,328,329,330,331,332,333,334,335,336,337,338,339,340,341,342,343,344,345,346,347,348,349,350,351,352,353,354,355,356,357,358,359,360,361,362,363,364,365,366,367,368,369,370,371,372,373,374,375,376,377,378,379,380,381,382,383,384,385,386,387,388,389,390,391,392,393,394,395,396,397,398,399,400,401,402,403,404,405,406,407,408,409,410,411,412,413,414,415,416,417,418,419,420,421,422,423,424,425,426,427,428,429,430,431,432,433,434,435,436,437,438,439,440,441,442,443,444,445,446,447,448,449,450,451,452,453,454,455,456,457,458,459,460,461,462,463,464,465,466,467,468,469,470,471,472,473,474,475,476,477,478,479,480,481,482,483,484,485,486,487,488,489,490,491,492,493,494,495,496,497,498,499,500,501,502,503,504,505,506,507,508,509,510,511,512,513,514,515,516,517,518,519,520,521,522,523,524,525,526,527,528,529,530,531,532,533,534,535,536,537,538,539,540,541,542,543,544,545,546,547,548,549,550,551,552,553,554,555,556,557,558,559,560,561,562,563,564,565,566,567,568,569,570,571,572,573,574,575,576,577,578,579,580,581,582,583,584,585,586,587,588,589,590,591,592,593,594,595,596,597,598,599,600,601,602,603,604,605,606,607,608,609,610,611,612,613,614,615,616,617,618,619,620,621,622,623,624,625,626,627,628,629,630,631,632,633,634,635,636,637,638,639,640,641,642,643,644,645,646,647,648,649,650,651,652,653,654,655,656,657,658,659,660,661,662,663,664,665,666,667,668,669,670,671,672,673,674,675,676,677,678,679,680,681,682,683,684,685,686,687,688,689,690,691,692,693,694,695,696,697,698,699,700,701,702,703,704,705,706,707,708,709,710,711,712,713,714,715,716,717,718,719,720,721,722,723,724,725,726,727,728,729,730,731,732,733,734,735,736,737,738,739,740,741,742,743,744,745,746,747,748,749,750,751,752,753,754,755,756,757,758,759,760,761,762,763,764,765,766,767,768,769,770,771,772,773,774,775,776,777,778,779,780,781,782,783,784,785,786,787,788,789,790,791,792,793,794,795,796,797,798,799,800,801,802,803,804,805,806,807,808,809,810,811,812,813,814,815,816,817,818,819,820,821,822,823,824,825,826,827,828,829,830,831,832,833,834,835,836,837,838,839,840,841,842,843,844,845,846,847,848,849,850,851,852,853,854,855,856,857,858,859,860,861,862,863,864,865,866,867,868,869,870,871,872,873,874,875,876,877,878,879,880,881,882,883,884,885,886,887,888,889,890,891,892,893,894,895,896,897,898,899,900,901,902,903,904,905,906,907,908,909,910,911,912,913,914,915,916,917,918,919,920,921,922,923,924,925,926,927,928,929,930,931,932,933,934,935,936,937,938,939,940,941,942,943,944,945,946,947,948,949,950,951,952,953,954,955,956,957,958,959,960,961,962,963,964,965,966,967,968,969,970,971,972,973,974,975,976,977,978,979,980,981,982,983,984,985,986,987,988,989,990,991,992,993,994,995,996,997,998,999,1000,1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1011,1012,1013,1014,1015,1016,1017,1018,1019,1020,1021,1022,1023,1024,1025,1026,1027,1028,1029,1030,1031,1032,1033,1034,1035,1036,1037,1038,1039,1040,1041,1042,1043,1044,1045,1046,1047,1048,1049,1050,1051,1052,1053,1054,1055,1056,1057,1058,1059,1060,1061,1062,1063,1064,1065,1066,1067,1068,1069,1070,1071,1072,1073,1074,1075,1076,1077,1078,1079,1080,1081,1082,1083,1084,1085,1086,1087,1088,1089,1090,1091,1092,1093,1094,1095,1096,1097,1098,1099,1100,1101,1102,1103,1104,1105,1106,1107,1108],"y":[306.25,299.5,303.45,296.75,304.4,298.35,304,304,301.25,302.5,302.45,305.8,306.9,307,306.85,302.15,301.9,299.25,298.6,303.5,303,304.9,304.8,301.25,301.75,303.45,302.5,300.6,300,303.45,302.8,303.4,304.9,304.95,302.9,302.85,302,298.8,290,285,290.75,290.5,288.1,288.3,288.85,286.7,289.3,289,290.25,288.75,290.1,290.25,289.9,293.7,307.25,333.25,312.5,320.75,315.9,316,329.9,328.75,329.8,324.65,317,321.1,317,null,null,323.1,323.3,329,331.25,330.3,331.5,327,325.5,327.7,328.1,326,322.6,322.4,322.5,323,324.65,315.6,314.25,313.7,null,311.25,313.35,314.5,313.55,316.75,324.75,322.85,320.4,319.8,323.65,316.5,317.4,316.4,316.35,null,313.9,311.2,315,313.15,316.85,316.25,314.75,314.9,315,310.75,313.25,313.75,314.1,315.75,317.25,321.65,325.2,322,315.25,314.1,315.9,316.5,316.25,316.5,313.35,310.85,310.4,310.7,310.9,312.2,314.8,314.7,313.8,315.05,317.15,316.8,321.7,322.25,319,317.4,322.75,318.5,319.4,317.6,323,323.25,328.1,326.75,319.65,323,321.4,320.65,322.9,322.4,326.6,328.5,326.2,328.9,335.4,339.25,335.5,335.75,337.6,333.6,null,335.25,339.3,338.4,335.75,335.45,332.7,325,326,318.75,320.2,320,322,318,321.75,318.85,318.7,315.5,315.9,319.2,328.1,328.4,328.7,330.4,328.95,326.5,323.15,324.75,324.35,330.55,326.25,326.1,326.95,325.55,325.8,326.6,326.85,325.9,324.6,326.25,326.5,325.9,326.9,325.95,325.65,326.5,326.55,326.8,325.75,324.65,325.6,324.55,324.75,323.6,322.1,323.25,322.7,324.5,325,324.55,323.75,324.1,325.05,325.75,326,330.5,331.5,330.45,326.75,327.4,323.95,322.5,324.5,322.5,322.5,320.15,316.1,316.8,316.05,317.9,318.25,321.9,321.1,323.4,323.55,325.75,324.85,null,null,324.8,326.15,327,null,327.1,326,327.8,328.9,330.9,333.9,339.45,340.75,338.8,345.3,359.6,357.25,353.25,356.5,352.75,349.5,355.25,361.75,353.8,354.4,355.4,354,347.35,338.5,335.95,337.1,337.9,340.5,337.2,338.35,335.4,329.5,333,332.4,343.7,339.25,339,343.35,351.4,345.1,337.85,338.25,339.45,337.9,342.2,343,342,341.8,341.65,344.5,349.8,347.6,348.2,350.8,349.25,350.6,351.35,352.4,352.9,344.9,345.5,null,null,333.7,335.5,336.6,335.6,336.5,340.65,338.65,338.15,340.25,343.2,340.25,340.75,339.3,341,342.45,344.15,347.25,346,344.3,344.4,342.35,344.75,345.6,341.6,null,341.55,342.15,344.6,344.25,344.9,343.8,342.75,342.5,342.75,342.05,340.3,338.6,339.4,340.85,null,341.15,341.6,342.75,343.35,343,341.85,341.4,341.5,341.5,341.85,347.55,347.5,347.95,347.4,346.5,337.3,338.5,338.7,338.9,340.5,340.75,343.25,343.8,343.55,345.5,345.65,344,343.5,343.8,344.45,346.5,350.35,347.5,347.65,346.2,345.85,348.35,346.9,347.1,353,353.5,351.75,348.5,349,350.8,353.3,351.35,375.75,360.5,358.75,358.5,360.85,360.85,361.85,394.5,386.1,391.25,384,386.4,377.25,372.5,379,381.75,384.65,null,397.3,377.8,384,386,392,395.5,407.2,404,418.25,419,412.5,414.5,407,418.75,416,413.55,413.6,415.7,423,442.75,435.15,434,432.25,434,429.45,421.2,425.5,425.5,436.9,436.5,442,439.4,435.8,428.15,431.4,431.25,426.25,426,420,420,426.8,426.6,425.4,413,409.6,409.55,407.75,404,401.5,400.3,408.5,410.25,405,408.3,409.9,407.4,407.45,406.85,409,393.25,388,391.5,387,389.5,380.4,380.75,384,382.3,390,399.6,394.3,385.25,391.2,388.6,390.5,389.2,387.25,388.75,389.7,394.6,393.7,393.4,392.5,394.15,395.35,392.75,391,null,null,391.4,389.4,390.9,null,402.4,399,401.7,399.5,401.6,402.25,409.9,408.6,414.4,415,414.5,421.25,417.4,408.5,410.6,403.55,403.35,408.7,416.5,411,407.3,406.45,402,401.75,402.6,402.7,402.95,404.4,402.9,402,395.55,397.2,396.85,392.25,392.6,397.5,403,401.95,406.7,403.1,408.7,404.4,403.7,407.65,411.45,406.5,404.85,405,406.85,408,409.25,404.65,406,406.4,405.05,405,406.6,410.3,415,411.3,415.9,421.8,419,418.5,420.25,418.65,420.55,419.8,423.2,421.5,423.3,436.5,440.25,445.5,441,null,null,454.3,446.8,453,462.6,476.6,455.75,451.75,454.5,452.15,null,464.5,456.75,457.4,456.7,454.75,460.25,459.5,460,466.7,476.5,471.35,479.95,468.6,473.6,null,459.65,447.9,453.35,451.75,443.4,449.3,453.35,450.25,454.7,454.4,452.05,456.65,456.4,460.8,450.35,452.75,448.25,451.1,452.25,443.6,438.1,443,439,441.4,446,447.1,449.5,447.4,443,443.1,444.8,442.15,445.3,444.25,443.7,447.15,448.25,452.9,452.5,449.65,452.5,454.45,454.75,454,453.1,454.2,459.5,457.2,464.2,473.25,476,469.85,468.85,464,459.5,463.2,461,462,457.4,454.8,454.9,457.65,457.4,454.1,455.8,458.5,457.4,458.25,455.9,null,453.1,456.55,462.15,464.4,463.35,462.75,458,461,460.9,456.6,458.35,458.5,458.8,461.35,458.85,463.15,461.05,463.85,461,460.9,458.9,459.15,454.1,455,455.15,456.85,458.55,458.25,461.75,461.85,459.65,459.45,461.75,464.25,479.5,481.6,466.65,469.8,472.65,474.85,473.45,479.65,474.05,468,469.95,470.1,467,459.7,458.6,463.5,458.75,461.3,463,464.2,461.75,463.55,464.2,465.8,466.25,468.25,476.95,478.75,477.65,477.8,493.9,486.9,490,488.95,485.75,480.9,483,485.3,484.5,495,502.75,593.7,487.05,487.75,484.55,481,481.6,483.25,483.75,null,null,489.55,486.9,486.5,null,484.1,477.3,481.6,483.95,479.5,485.3,482.05,481.4,480.9,484.8,475.85,476.75,477.75,476.5,477.85,471.4,471.4,469.4,468,465.25,454.65,455.15,447.1,437.6,444.15,443.05,439.25,443.8,440.2,440.3,443.6,444.25,444.4,446.25,443.45,445.1,443.95,438,433.95,432.65,423.75,429.15,431.55,429.15,430.75,436,435.7,436.1,437.25,444.1,441.9,442.25,447.15,445.35,442.8,446.5,449.4,450,453.9,451.5,453.1,454.7,454,458,null,null,456,450.8,446.25,448.6,450.15,450.2,448.5,447,453.85,457.55,456.55,458,454,453.15,449.75,448.25,449.1,452.15,449.75,null,444.3,441.95,445.35,445.95,443.6,447.1,449.35,448.65,451.05,453.4,453.15,452.7,456.65,459.5,460.25,458.6,458.6,453,452.5,null,454,457,454.6,464.85,464.1,463.4,458.75,455,457.1,450.5,450.8,450.3,452.65,449.8,453.9,451.7,449.8,447.6,447,442,443.85,434.9,436.85,436.5,437.15,437.4,438.1,439.15,438.9,439.65,434.5,436.2,439.05,438.1,437.65,437.25,445,443.2,443.2,442.2,430.15,431.7,428.75,432.7,436.4,432.9,431.25,433.4,431.45,431.85,428.25,426.95,429,428.4,431.15,432,429,430.2,432.4,429.7,432.7,432.1,434.8,433.75,null,429.4,426.35,430.3,430.3,427,427.65,427,428,428.9,418,420.8,421.9,421.5,417.3,409,410.4,401.6,399.6,399.3,389.05,397,397.65,398.6,396.15,394.2,397.35,397.25,403,404.25,406.25,408,404.7,408.6,406.5,411.15,413.05,410.8,411.4,410.55,406.3,406.6,407.5,407.15,407.3,412.3,411,412.5,422.9,419.5,422,421.85,419.5,422.25,420.75,420.65,422.8,422.6,423.3,419.75,416.6,416.1,417.95,419.85,422.6,421.4,422.1,421.3,425.5,423.8,430.4,429,425.35,423.3,422.2,421,420.05,419.6,421.4,412.6,413.65,413.2,413.85,415.6,417.55,null,null,413.65,413.1,410.15,null,413.6,410.5,408,408.45,404.45,405.5,403.5,404.85,403.5,401.75,402.1,402.85,402.3,404.5,407.75,407.8,404.75,406,402.25,394.3,394.85,392,392.7,390.85,390.25,391.45,390.4,394.1,393.8,386.7,385.65,381.7,384.25,378.95,382.15,382.75,386,389,389.25,390.75,386.75,386.1,384.1,384.1,388.4,386.3,393.1,392.5,397,393.1,394.3,394.45,391,389.25,395.3,394.1,393.4,396,null,null,391.25,383.3,384,382.3],"text":["x: 1 y: 306.25","x: 2 y: 299.50","x: 3 y: 303.45","x: 4 y: 296.75","x: 5 y: 304.40","x: 6 y: 298.35","x: 7 y: 304.00","x: 8 y: 304.00","x: 9 y: 301.25","x: 10 y: 302.50","x: 11 y: 302.45","x: 12 y: 305.80","x: 13 y: 306.90","x: 14 y: 307.00","x: 15 y: 306.85","x: 16 y: 302.15","x: 17 y: 301.90","x: 18 y: 299.25","x: 19 y: 298.60","x: 20 y: 303.50","x: 21 y: 303.00","x: 22 y: 304.90","x: 23 y: 304.80","x: 24 y: 301.25","x: 25 y: 301.75","x: 26 y: 303.45","x: 27 y: 302.50","x: 28 y: 300.60","x: 29 y: 300.00","x: 30 y: 303.45","x: 31 y: 302.80","x: 32 y: 303.40","x: 33 y: 304.90","x: 34 y: 304.95","x: 35 y: 302.90","x: 36 y: 302.85","x: 37 y: 302.00","x: 38 y: 298.80","x: 39 y: 290.00","x: 40 y: 285.00","x: 41 y: 290.75","x: 42 y: 290.50","x: 43 y: 288.10","x: 44 y: 288.30","x: 45 y: 288.85","x: 46 y: 286.70","x: 47 y: 289.30","x: 48 y: 289.00","x: 49 y: 290.25","x: 50 y: 288.75","x: 51 y: 290.10","x: 52 y: 290.25","x: 53 y: 289.90","x: 54 y: 293.70","x: 55 y: 307.25","x: 56 y: 333.25","x: 57 y: 312.50","x: 58 y: 320.75","x: 59 y: 315.90","x: 60 y: 316.00","x: 61 y: 329.90","x: 62 y: 328.75","x: 63 y: 329.80","x: 64 y: 324.65","x: 65 y: 317.00","x: 66 y: 321.10","x: 67 y: 317.00","x: 68 y: NA","x: 69 y: NA","x: 70 y: 323.10","x: 71 y: 323.30","x: 72 y: 329.00","x: 73 y: 331.25","x: 74 y: 330.30","x: 75 y: 331.50","x: 76 y: 327.00","x: 77 y: 325.50","x: 78 y: 327.70","x: 79 y: 328.10","x: 80 y: 326.00","x: 81 y: 322.60","x: 82 y: 322.40","x: 83 y: 322.50","x: 84 y: 323.00","x: 85 y: 324.65","x: 86 y: 315.60","x: 87 y: 314.25","x: 88 y: 313.70","x: 89 y: NA","x: 90 y: 311.25","x: 91 y: 313.35","x: 92 y: 314.50","x: 93 y: 313.55","x: 94 y: 316.75","x: 95 y: 324.75","x: 96 y: 322.85","x: 97 y: 320.40","x: 98 y: 319.80","x: 99 y: 323.65","x: 100 y: 316.50","x: 101 y: 317.40","x: 102 y: 316.40","x: 103 y: 316.35","x: 104 y: NA","x: 105 y: 313.90","x: 106 y: 311.20","x: 107 y: 315.00","x: 108 y: 313.15","x: 109 y: 316.85","x: 110 y: 316.25","x: 111 y: 314.75","x: 112 y: 314.90","x: 113 y: 315.00","x: 114 y: 310.75","x: 115 y: 313.25","x: 116 y: 313.75","x: 117 y: 314.10","x: 118 y: 315.75","x: 119 y: 317.25","x: 120 y: 321.65","x: 121 y: 325.20","x: 122 y: 322.00","x: 123 y: 315.25","x: 124 y: 314.10","x: 125 y: 315.90","x: 126 y: 316.50","x: 127 y: 316.25","x: 128 y: 316.50","x: 129 y: 313.35","x: 130 y: 310.85","x: 131 y: 310.40","x: 132 y: 310.70","x: 133 y: 310.90","x: 134 y: 312.20","x: 135 y: 314.80","x: 136 y: 314.70","x: 137 y: 313.80","x: 138 y: 315.05","x: 139 y: 317.15","x: 140 y: 316.80","x: 141 y: 321.70","x: 142 y: 322.25","x: 143 y: 319.00","x: 144 y: 317.40","x: 145 y: 322.75","x: 146 y: 318.50","x: 147 y: 319.40","x: 148 y: 317.60","x: 149 y: 323.00","x: 150 y: 323.25","x: 151 y: 328.10","x: 152 y: 326.75","x: 153 y: 319.65","x: 154 y: 323.00","x: 155 y: 321.40","x: 156 y: 320.65","x: 157 y: 322.90","x: 158 y: 322.40","x: 159 y: 326.60","x: 160 y: 328.50","x: 161 y: 326.20","x: 162 y: 328.90","x: 163 y: 335.40","x: 164 y: 339.25","x: 165 y: 335.50","x: 166 y: 335.75","x: 167 y: 337.60","x: 168 y: 333.60","x: 169 y: NA","x: 170 y: 335.25","x: 171 y: 339.30","x: 172 y: 338.40","x: 173 y: 335.75","x: 174 y: 335.45","x: 175 y: 332.70","x: 176 y: 325.00","x: 177 y: 326.00","x: 178 y: 318.75","x: 179 y: 320.20","x: 180 y: 320.00","x: 181 y: 322.00","x: 182 y: 318.00","x: 183 y: 321.75","x: 184 y: 318.85","x: 185 y: 318.70","x: 186 y: 315.50","x: 187 y: 315.90","x: 188 y: 319.20","x: 189 y: 328.10","x: 190 y: 328.40","x: 191 y: 328.70","x: 192 y: 330.40","x: 193 y: 328.95","x: 194 y: 326.50","x: 195 y: 323.15","x: 196 y: 324.75","x: 197 y: 324.35","x: 198 y: 330.55","x: 199 y: 326.25","x: 200 y: 326.10","x: 201 y: 326.95","x: 202 y: 325.55","x: 203 y: 325.80","x: 204 y: 326.60","x: 205 y: 326.85","x: 206 y: 325.90","x: 207 y: 324.60","x: 208 y: 326.25","x: 209 y: 326.50","x: 210 y: 325.90","x: 211 y: 326.90","x: 212 y: 325.95","x: 213 y: 325.65","x: 214 y: 326.50","x: 215 y: 326.55","x: 216 y: 326.80","x: 217 y: 325.75","x: 218 y: 324.65","x: 219 y: 325.60","x: 220 y: 324.55","x: 221 y: 324.75","x: 222 y: 323.60","x: 223 y: 322.10","x: 224 y: 323.25","x: 225 y: 322.70","x: 226 y: 324.50","x: 227 y: 325.00","x: 228 y: 324.55","x: 229 y: 323.75","x: 230 y: 324.10","x: 231 y: 325.05","x: 232 y: 325.75","x: 233 y: 326.00","x: 234 y: 330.50","x: 235 y: 331.50","x: 236 y: 330.45","x: 237 y: 326.75","x: 238 y: 327.40","x: 239 y: 323.95","x: 240 y: 322.50","x: 241 y: 324.50","x: 242 y: 322.50","x: 243 y: 322.50","x: 244 y: 320.15","x: 245 y: 316.10","x: 246 y: 316.80","x: 247 y: 316.05","x: 248 y: 317.90","x: 249 y: 318.25","x: 250 y: 321.90","x: 251 y: 321.10","x: 252 y: 323.40","x: 253 y: 323.55","x: 254 y: 325.75","x: 255 y: 324.85","x: 256 y: NA","x: 257 y: NA","x: 258 y: 324.80","x: 259 y: 326.15","x: 260 y: 327.00","x: 261 y: NA","x: 262 y: 327.10","x: 263 y: 326.00","x: 264 y: 327.80","x: 265 y: 328.90","x: 266 y: 330.90","x: 267 y: 333.90","x: 268 y: 339.45","x: 269 y: 340.75","x: 270 y: 338.80","x: 271 y: 345.30","x: 272 y: 359.60","x: 273 y: 357.25","x: 274 y: 353.25","x: 275 y: 356.50","x: 276 y: 352.75","x: 277 y: 349.50","x: 278 y: 355.25","x: 279 y: 361.75","x: 280 y: 353.80","x: 281 y: 354.40","x: 282 y: 355.40","x: 283 y: 354.00","x: 284 y: 347.35","x: 285 y: 338.50","x: 286 y: 335.95","x: 287 y: 337.10","x: 288 y: 337.90","x: 289 y: 340.50","x: 290 y: 337.20","x: 291 y: 338.35","x: 292 y: 335.40","x: 293 y: 329.50","x: 294 y: 333.00","x: 295 y: 332.40","x: 296 y: 343.70","x: 297 y: 339.25","x: 298 y: 339.00","x: 299 y: 343.35","x: 300 y: 351.40","x: 301 y: 345.10","x: 302 y: 337.85","x: 303 y: 338.25","x: 304 y: 339.45","x: 305 y: 337.90","x: 306 y: 342.20","x: 307 y: 343.00","x: 308 y: 342.00","x: 309 y: 341.80","x: 310 y: 341.65","x: 311 y: 344.50","x: 312 y: 349.80","x: 313 y: 347.60","x: 314 y: 348.20","x: 315 y: 350.80","x: 316 y: 349.25","x: 317 y: 350.60","x: 318 y: 351.35","x: 319 y: 352.40","x: 320 y: 352.90","x: 321 y: 344.90","x: 322 y: 345.50","x: 323 y: NA","x: 324 y: NA","x: 325 y: 333.70","x: 326 y: 335.50","x: 327 y: 336.60","x: 328 y: 335.60","x: 329 y: 336.50","x: 330 y: 340.65","x: 331 y: 338.65","x: 332 y: 338.15","x: 333 y: 340.25","x: 334 y: 343.20","x: 335 y: 340.25","x: 336 y: 340.75","x: 337 y: 339.30","x: 338 y: 341.00","x: 339 y: 342.45","x: 340 y: 344.15","x: 341 y: 347.25","x: 342 y: 346.00","x: 343 y: 344.30","x: 344 y: 344.40","x: 345 y: 342.35","x: 346 y: 344.75","x: 347 y: 345.60","x: 348 y: 341.60","x: 349 y: NA","x: 350 y: 341.55","x: 351 y: 342.15","x: 352 y: 344.60","x: 353 y: 344.25","x: 354 y: 344.90","x: 355 y: 343.80","x: 356 y: 342.75","x: 357 y: 342.50","x: 358 y: 342.75","x: 359 y: 342.05","x: 360 y: 340.30","x: 361 y: 338.60","x: 362 y: 339.40","x: 363 y: 340.85","x: 364 y: NA","x: 365 y: 341.15","x: 366 y: 341.60","x: 367 y: 342.75","x: 368 y: 343.35","x: 369 y: 343.00","x: 370 y: 341.85","x: 371 y: 341.40","x: 372 y: 341.50","x: 373 y: 341.50","x: 374 y: 341.85","x: 375 y: 347.55","x: 376 y: 347.50","x: 377 y: 347.95","x: 378 y: 347.40","x: 379 y: 346.50","x: 380 y: 337.30","x: 381 y: 338.50","x: 382 y: 338.70","x: 383 y: 338.90","x: 384 y: 340.50","x: 385 y: 340.75","x: 386 y: 343.25","x: 387 y: 343.80","x: 388 y: 343.55","x: 389 y: 345.50","x: 390 y: 345.65","x: 391 y: 344.00","x: 392 y: 343.50","x: 393 y: 343.80","x: 394 y: 344.45","x: 395 y: 346.50","x: 396 y: 350.35","x: 397 y: 347.50","x: 398 y: 347.65","x: 399 y: 346.20","x: 400 y: 345.85","x: 401 y: 348.35","x: 402 y: 346.90","x: 403 y: 347.10","x: 404 y: 353.00","x: 405 y: 353.50","x: 406 y: 351.75","x: 407 y: 348.50","x: 408 y: 349.00","x: 409 y: 350.80","x: 410 y: 353.30","x: 411 y: 351.35","x: 412 y: 375.75","x: 413 y: 360.50","x: 414 y: 358.75","x: 415 y: 358.50","x: 416 y: 360.85","x: 417 y: 360.85","x: 418 y: 361.85","x: 419 y: 394.50","x: 420 y: 386.10","x: 421 y: 391.25","x: 422 y: 384.00","x: 423 y: 386.40","x: 424 y: 377.25","x: 425 y: 372.50","x: 426 y: 379.00","x: 427 y: 381.75","x: 428 y: 384.65","x: 429 y: NA","x: 430 y: 397.30","x: 431 y: 377.80","x: 432 y: 384.00","x: 433 y: 386.00","x: 434 y: 392.00","x: 435 y: 395.50","x: 436 y: 407.20","x: 437 y: 404.00","x: 438 y: 418.25","x: 439 y: 419.00","x: 440 y: 412.50","x: 441 y: 414.50","x: 442 y: 407.00","x: 443 y: 418.75","x: 444 y: 416.00","x: 445 y: 413.55","x: 446 y: 413.60","x: 447 y: 415.70","x: 448 y: 423.00","x: 449 y: 442.75","x: 450 y: 435.15","x: 451 y: 434.00","x: 452 y: 432.25","x: 453 y: 434.00","x: 454 y: 429.45","x: 455 y: 421.20","x: 456 y: 425.50","x: 457 y: 425.50","x: 458 y: 436.90","x: 459 y: 436.50","x: 460 y: 442.00","x: 461 y: 439.40","x: 462 y: 435.80","x: 463 y: 428.15","x: 464 y: 431.40","x: 465 y: 431.25","x: 466 y: 426.25","x: 467 y: 426.00","x: 468 y: 420.00","x: 469 y: 420.00","x: 470 y: 426.80","x: 471 y: 426.60","x: 472 y: 425.40","x: 473 y: 413.00","x: 474 y: 409.60","x: 475 y: 409.55","x: 476 y: 407.75","x: 477 y: 404.00","x: 478 y: 401.50","x: 479 y: 400.30","x: 480 y: 408.50","x: 481 y: 410.25","x: 482 y: 405.00","x: 483 y: 408.30","x: 484 y: 409.90","x: 485 y: 407.40","x: 486 y: 407.45","x: 487 y: 406.85","x: 488 y: 409.00","x: 489 y: 393.25","x: 490 y: 388.00","x: 491 y: 391.50","x: 492 y: 387.00","x: 493 y: 389.50","x: 494 y: 380.40","x: 495 y: 380.75","x: 496 y: 384.00","x: 497 y: 382.30","x: 498 y: 390.00","x: 499 y: 399.60","x: 500 y: 394.30","x: 501 y: 385.25","x: 502 y: 391.20","x: 503 y: 388.60","x: 504 y: 390.50","x: 505 y: 389.20","x: 506 y: 387.25","x: 507 y: 388.75","x: 508 y: 389.70","x: 509 y: 394.60","x: 510 y: 393.70","x: 511 y: 393.40","x: 512 y: 392.50","x: 513 y: 394.15","x: 514 y: 395.35","x: 515 y: 392.75","x: 516 y: 391.00","x: 517 y: NA","x: 518 y: NA","x: 519 y: 391.40","x: 520 y: 389.40","x: 521 y: 390.90","x: 522 y: NA","x: 523 y: 402.40","x: 524 y: 399.00","x: 525 y: 401.70","x: 526 y: 399.50","x: 527 y: 401.60","x: 528 y: 402.25","x: 529 y: 409.90","x: 530 y: 408.60","x: 531 y: 414.40","x: 532 y: 415.00","x: 533 y: 414.50","x: 534 y: 421.25","x: 535 y: 417.40","x: 536 y: 408.50","x: 537 y: 410.60","x: 538 y: 403.55","x: 539 y: 403.35","x: 540 y: 408.70","x: 541 y: 416.50","x: 542 y: 411.00","x: 543 y: 407.30","x: 544 y: 406.45","x: 545 y: 402.00","x: 546 y: 401.75","x: 547 y: 402.60","x: 548 y: 402.70","x: 549 y: 402.95","x: 550 y: 404.40","x: 551 y: 402.90","x: 552 y: 402.00","x: 553 y: 395.55","x: 554 y: 397.20","x: 555 y: 396.85","x: 556 y: 392.25","x: 557 y: 392.60","x: 558 y: 397.50","x: 559 y: 403.00","x: 560 y: 401.95","x: 561 y: 406.70","x: 562 y: 403.10","x: 563 y: 408.70","x: 564 y: 404.40","x: 565 y: 403.70","x: 566 y: 407.65","x: 567 y: 411.45","x: 568 y: 406.50","x: 569 y: 404.85","x: 570 y: 405.00","x: 571 y: 406.85","x: 572 y: 408.00","x: 573 y: 409.25","x: 574 y: 404.65","x: 575 y: 406.00","x: 576 y: 406.40","x: 577 y: 405.05","x: 578 y: 405.00","x: 579 y: 406.60","x: 580 y: 410.30","x: 581 y: 415.00","x: 582 y: 411.30","x: 583 y: 415.90","x: 584 y: 421.80","x: 585 y: 419.00","x: 586 y: 418.50","x: 587 y: 420.25","x: 588 y: 418.65","x: 589 y: 420.55","x: 590 y: 419.80","x: 591 y: 423.20","x: 592 y: 421.50","x: 593 y: 423.30","x: 594 y: 436.50","x: 595 y: 440.25","x: 596 y: 445.50","x: 597 y: 441.00","x: 598 y: NA","x: 599 y: NA","x: 600 y: 454.30","x: 601 y: 446.80","x: 602 y: 453.00","x: 603 y: 462.60","x: 604 y: 476.60","x: 605 y: 455.75","x: 606 y: 451.75","x: 607 y: 454.50","x: 608 y: 452.15","x: 609 y: NA","x: 610 y: 464.50","x: 611 y: 456.75","x: 612 y: 457.40","x: 613 y: 456.70","x: 614 y: 454.75","x: 615 y: 460.25","x: 616 y: 459.50","x: 617 y: 460.00","x: 618 y: 466.70","x: 619 y: 476.50","x: 620 y: 471.35","x: 621 y: 479.95","x: 622 y: 468.60","x: 623 y: 473.60","x: 624 y: NA","x: 625 y: 459.65","x: 626 y: 447.90","x: 627 y: 453.35","x: 628 y: 451.75","x: 629 y: 443.40","x: 630 y: 449.30","x: 631 y: 453.35","x: 632 y: 450.25","x: 633 y: 454.70","x: 634 y: 454.40","x: 635 y: 452.05","x: 636 y: 456.65","x: 637 y: 456.40","x: 638 y: 460.80","x: 639 y: 450.35","x: 640 y: 452.75","x: 641 y: 448.25","x: 642 y: 451.10","x: 643 y: 452.25","x: 644 y: 443.60","x: 645 y: 438.10","x: 646 y: 443.00","x: 647 y: 439.00","x: 648 y: 441.40","x: 649 y: 446.00","x: 650 y: 447.10","x: 651 y: 449.50","x: 652 y: 447.40","x: 653 y: 443.00","x: 654 y: 443.10","x: 655 y: 444.80","x: 656 y: 442.15","x: 657 y: 445.30","x: 658 y: 444.25","x: 659 y: 443.70","x: 660 y: 447.15","x: 661 y: 448.25","x: 662 y: 452.90","x: 663 y: 452.50","x: 664 y: 449.65","x: 665 y: 452.50","x: 666 y: 454.45","x: 667 y: 454.75","x: 668 y: 454.00","x: 669 y: 453.10","x: 670 y: 454.20","x: 671 y: 459.50","x: 672 y: 457.20","x: 673 y: 464.20","x: 674 y: 473.25","x: 675 y: 476.00","x: 676 y: 469.85","x: 677 y: 468.85","x: 678 y: 464.00","x: 679 y: 459.50","x: 680 y: 463.20","x: 681 y: 461.00","x: 682 y: 462.00","x: 683 y: 457.40","x: 684 y: 454.80","x: 685 y: 454.90","x: 686 y: 457.65","x: 687 y: 457.40","x: 688 y: 454.10","x: 689 y: 455.80","x: 690 y: 458.50","x: 691 y: 457.40","x: 692 y: 458.25","x: 693 y: 455.90","x: 694 y: NA","x: 695 y: 453.10","x: 696 y: 456.55","x: 697 y: 462.15","x: 698 y: 464.40","x: 699 y: 463.35","x: 700 y: 462.75","x: 701 y: 458.00","x: 702 y: 461.00","x: 703 y: 460.90","x: 704 y: 456.60","x: 705 y: 458.35","x: 706 y: 458.50","x: 707 y: 458.80","x: 708 y: 461.35","x: 709 y: 458.85","x: 710 y: 463.15","x: 711 y: 461.05","x: 712 y: 463.85","x: 713 y: 461.00","x: 714 y: 460.90","x: 715 y: 458.90","x: 716 y: 459.15","x: 717 y: 454.10","x: 718 y: 455.00","x: 719 y: 455.15","x: 720 y: 456.85","x: 721 y: 458.55","x: 722 y: 458.25","x: 723 y: 461.75","x: 724 y: 461.85","x: 725 y: 459.65","x: 726 y: 459.45","x: 727 y: 461.75","x: 728 y: 464.25","x: 729 y: 479.50","x: 730 y: 481.60","x: 731 y: 466.65","x: 732 y: 469.80","x: 733 y: 472.65","x: 734 y: 474.85","x: 735 y: 473.45","x: 736 y: 479.65","x: 737 y: 474.05","x: 738 y: 468.00","x: 739 y: 469.95","x: 740 y: 470.10","x: 741 y: 467.00","x: 742 y: 459.70","x: 743 y: 458.60","x: 744 y: 463.50","x: 745 y: 458.75","x: 746 y: 461.30","x: 747 y: 463.00","x: 748 y: 464.20","x: 749 y: 461.75","x: 750 y: 463.55","x: 751 y: 464.20","x: 752 y: 465.80","x: 753 y: 466.25","x: 754 y: 468.25","x: 755 y: 476.95","x: 756 y: 478.75","x: 757 y: 477.65","x: 758 y: 477.80","x: 759 y: 493.90","x: 760 y: 486.90","x: 761 y: 490.00","x: 762 y: 488.95","x: 763 y: 485.75","x: 764 y: 480.90","x: 765 y: 483.00","x: 766 y: 485.30","x: 767 y: 484.50","x: 768 y: 495.00","x: 769 y: 502.75","x: 770 y: 593.70","x: 771 y: 487.05","x: 772 y: 487.75","x: 773 y: 484.55","x: 774 y: 481.00","x: 775 y: 481.60","x: 776 y: 483.25","x: 777 y: 483.75","x: 778 y: NA","x: 779 y: NA","x: 780 y: 489.55","x: 781 y: 486.90","x: 782 y: 486.50","x: 783 y: NA","x: 784 y: 484.10","x: 785 y: 477.30","x: 786 y: 481.60","x: 787 y: 483.95","x: 788 y: 479.50","x: 789 y: 485.30","x: 790 y: 482.05","x: 791 y: 481.40","x: 792 y: 480.90","x: 793 y: 484.80","x: 794 y: 475.85","x: 795 y: 476.75","x: 796 y: 477.75","x: 797 y: 476.50","x: 798 y: 477.85","x: 799 y: 471.40","x: 800 y: 471.40","x: 801 y: 469.40","x: 802 y: 468.00","x: 803 y: 465.25","x: 804 y: 454.65","x: 805 y: 455.15","x: 806 y: 447.10","x: 807 y: 437.60","x: 808 y: 444.15","x: 809 y: 443.05","x: 810 y: 439.25","x: 811 y: 443.80","x: 812 y: 440.20","x: 813 y: 440.30","x: 814 y: 443.60","x: 815 y: 444.25","x: 816 y: 444.40","x: 817 y: 446.25","x: 818 y: 443.45","x: 819 y: 445.10","x: 820 y: 443.95","x: 821 y: 438.00","x: 822 y: 433.95","x: 823 y: 432.65","x: 824 y: 423.75","x: 825 y: 429.15","x: 826 y: 431.55","x: 827 y: 429.15","x: 828 y: 430.75","x: 829 y: 436.00","x: 830 y: 435.70","x: 831 y: 436.10","x: 832 y: 437.25","x: 833 y: 444.10","x: 834 y: 441.90","x: 835 y: 442.25","x: 836 y: 447.15","x: 837 y: 445.35","x: 838 y: 442.80","x: 839 y: 446.50","x: 840 y: 449.40","x: 841 y: 450.00","x: 842 y: 453.90","x: 843 y: 451.50","x: 844 y: 453.10","x: 845 y: 454.70","x: 846 y: 454.00","x: 847 y: 458.00","x: 848 y: NA","x: 849 y: NA","x: 850 y: 456.00","x: 851 y: 450.80","x: 852 y: 446.25","x: 853 y: 448.60","x: 854 y: 450.15","x: 855 y: 450.20","x: 856 y: 448.50","x: 857 y: 447.00","x: 858 y: 453.85","x: 859 y: 457.55","x: 860 y: 456.55","x: 861 y: 458.00","x: 862 y: 454.00","x: 863 y: 453.15","x: 864 y: 449.75","x: 865 y: 448.25","x: 866 y: 449.10","x: 867 y: 452.15","x: 868 y: 449.75","x: 869 y: NA","x: 870 y: 444.30","x: 871 y: 441.95","x: 872 y: 445.35","x: 873 y: 445.95","x: 874 y: 443.60","x: 875 y: 447.10","x: 876 y: 449.35","x: 877 y: 448.65","x: 878 y: 451.05","x: 879 y: 453.40","x: 880 y: 453.15","x: 881 y: 452.70","x: 882 y: 456.65","x: 883 y: 459.50","x: 884 y: 460.25","x: 885 y: 458.60","x: 886 y: 458.60","x: 887 y: 453.00","x: 888 y: 452.50","x: 889 y: NA","x: 890 y: 454.00","x: 891 y: 457.00","x: 892 y: 454.60","x: 893 y: 464.85","x: 894 y: 464.10","x: 895 y: 463.40","x: 896 y: 458.75","x: 897 y: 455.00","x: 898 y: 457.10","x: 899 y: 450.50","x: 900 y: 450.80","x: 901 y: 450.30","x: 902 y: 452.65","x: 903 y: 449.80","x: 904 y: 453.90","x: 905 y: 451.70","x: 906 y: 449.80","x: 907 y: 447.60","x: 908 y: 447.00","x: 909 y: 442.00","x: 910 y: 443.85","x: 911 y: 434.90","x: 912 y: 436.85","x: 913 y: 436.50","x: 914 y: 437.15","x: 915 y: 437.40","x: 916 y: 438.10","x: 917 y: 439.15","x: 918 y: 438.90","x: 919 y: 439.65","x: 920 y: 434.50","x: 921 y: 436.20","x: 922 y: 439.05","x: 923 y: 438.10","x: 924 y: 437.65","x: 925 y: 437.25","x: 926 y: 445.00","x: 927 y: 443.20","x: 928 y: 443.20","x: 929 y: 442.20","x: 930 y: 430.15","x: 931 y: 431.70","x: 932 y: 428.75","x: 933 y: 432.70","x: 934 y: 436.40","x: 935 y: 432.90","x: 936 y: 431.25","x: 937 y: 433.40","x: 938 y: 431.45","x: 939 y: 431.85","x: 940 y: 428.25","x: 941 y: 426.95","x: 942 y: 429.00","x: 943 y: 428.40","x: 944 y: 431.15","x: 945 y: 432.00","x: 946 y: 429.00","x: 947 y: 430.20","x: 948 y: 432.40","x: 949 y: 429.70","x: 950 y: 432.70","x: 951 y: 432.10","x: 952 y: 434.80","x: 953 y: 433.75","x: 954 y: NA","x: 955 y: 429.40","x: 956 y: 426.35","x: 957 y: 430.30","x: 958 y: 430.30","x: 959 y: 427.00","x: 960 y: 427.65","x: 961 y: 427.00","x: 962 y: 428.00","x: 963 y: 428.90","x: 964 y: 418.00","x: 965 y: 420.80","x: 966 y: 421.90","x: 967 y: 421.50","x: 968 y: 417.30","x: 969 y: 409.00","x: 970 y: 410.40","x: 971 y: 401.60","x: 972 y: 399.60","x: 973 y: 399.30","x: 974 y: 389.05","x: 975 y: 397.00","x: 976 y: 397.65","x: 977 y: 398.60","x: 978 y: 396.15","x: 979 y: 394.20","x: 980 y: 397.35","x: 981 y: 397.25","x: 982 y: 403.00","x: 983 y: 404.25","x: 984 y: 406.25","x: 985 y: 408.00","x: 986 y: 404.70","x: 987 y: 408.60","x: 988 y: 406.50","x: 989 y: 411.15","x: 990 y: 413.05","x: 991 y: 410.80","x: 992 y: 411.40","x: 993 y: 410.55","x: 994 y: 406.30","x: 995 y: 406.60","x: 996 y: 407.50","x: 997 y: 407.15","x: 998 y: 407.30","x: 999 y: 412.30","x: 1000 y: 411.00","x: 1001 y: 412.50","x: 1002 y: 422.90","x: 1003 y: 419.50","x: 1004 y: 422.00","x: 1005 y: 421.85","x: 1006 y: 419.50","x: 1007 y: 422.25","x: 1008 y: 420.75","x: 1009 y: 420.65","x: 1010 y: 422.80","x: 1011 y: 422.60","x: 1012 y: 423.30","x: 1013 y: 419.75","x: 1014 y: 416.60","x: 1015 y: 416.10","x: 1016 y: 417.95","x: 1017 y: 419.85","x: 1018 y: 422.60","x: 1019 y: 421.40","x: 1020 y: 422.10","x: 1021 y: 421.30","x: 1022 y: 425.50","x: 1023 y: 423.80","x: 1024 y: 430.40","x: 1025 y: 429.00","x: 1026 y: 425.35","x: 1027 y: 423.30","x: 1028 y: 422.20","x: 1029 y: 421.00","x: 1030 y: 420.05","x: 1031 y: 419.60","x: 1032 y: 421.40","x: 1033 y: 412.60","x: 1034 y: 413.65","x: 1035 y: 413.20","x: 1036 y: 413.85","x: 1037 y: 415.60","x: 1038 y: 417.55","x: 1039 y: NA","x: 1040 y: NA","x: 1041 y: 413.65","x: 1042 y: 413.10","x: 1043 y: 410.15","x: 1044 y: NA","x: 1045 y: 413.60","x: 1046 y: 410.50","x: 1047 y: 408.00","x: 1048 y: 408.45","x: 1049 y: 404.45","x: 1050 y: 405.50","x: 1051 y: 403.50","x: 1052 y: 404.85","x: 1053 y: 403.50","x: 1054 y: 401.75","x: 1055 y: 402.10","x: 1056 y: 402.85","x: 1057 y: 402.30","x: 1058 y: 404.50","x: 1059 y: 407.75","x: 1060 y: 407.80","x: 1061 y: 404.75","x: 1062 y: 406.00","x: 1063 y: 402.25","x: 1064 y: 394.30","x: 1065 y: 394.85","x: 1066 y: 392.00","x: 1067 y: 392.70","x: 1068 y: 390.85","x: 1069 y: 390.25","x: 1070 y: 391.45","x: 1071 y: 390.40","x: 1072 y: 394.10","x: 1073 y: 393.80","x: 1074 y: 386.70","x: 1075 y: 385.65","x: 1076 y: 381.70","x: 1077 y: 384.25","x: 1078 y: 378.95","x: 1079 y: 382.15","x: 1080 y: 382.75","x: 1081 y: 386.00","x: 1082 y: 389.00","x: 1083 y: 389.25","x: 1084 y: 390.75","x: 1085 y: 386.75","x: 1086 y: 386.10","x: 1087 y: 384.10","x: 1088 y: 384.10","x: 1089 y: 388.40","x: 1090 y: 386.30","x: 1091 y: 393.10","x: 1092 y: 392.50","x: 1093 y: 397.00","x: 1094 y: 393.10","x: 1095 y: 394.30","x: 1096 y: 394.45","x: 1097 y: 391.00","x: 1098 y: 389.25","x: 1099 y: 395.30","x: 1100 y: 394.10","x: 1101 y: 393.40","x: 1102 y: 396.00","x: 1103 y: NA","x: 1104 y: NA","x: 1105 y: 391.25","x: 1106 y: 383.30","x: 1107 y: 384.00","x: 1108 y: 382.30"],"type":"scatter","mode":"lines","line":{"color":"gold"},"hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"y","frame":null}],"layout":{"margin":{"t":31.9402241594022,"r":7.30593607305936,"b":45.8945620589456,"l":43.1050228310502},"plot_bgcolor":"rgba(235,235,235,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-54.35,1163.35],"tickmode":"array","ticktext":["0","300","600","900"],"tickvals":[7.105427357601e-15,300,600,900],"categoryorder":"array","categoryarray":["0","300","600","900"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(255,255,255,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"y","title":{"text":"x","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[269.565,609.135],"tickmode":"array","ticktext":["300","400","500","600"],"tickvals":[300,400,500,600],"categoryorder":"array","categoryarray":["300","400","500","600"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":3.65296803652968,"tickwidth":0.66417600664176,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":11.689497716895},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(255,255,255,1)","gridwidth":0.66417600664176,"zeroline":false,"anchor":"x","title":{"text":"y","font":{"color":"rgba(0,0,0,1)","family":"","size":14.6118721461187}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":null,"line":{"color":null,"width":0,"linetype":[]},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":false,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":1.88976377952756,"font":{"color":"rgba(0,0,0,1)","family":"","size":11.689497716895}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","showSendToCloud":false},"source":"A","attrs":{"1db324eec0cf":{"x":{},"y":{},"type":"scatter"}},"cur_data":"1db324eec0cf","visdat":{"1db324eec0cf":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

???

---

# Cheatsheet + Cookbook

Handy cheatsheet available at: https://images.plot.ly/plotly-documentation/images/r_cheat_sheet.pdf.

Cookbook available at: https://plotly-r.com/index.html

???

---

# Creating a Plot

```r
trace_0 <- rnorm(100, mean = 5)
trace_1 <- rnorm(100, mean = 0)
trace_2 <- rnorm(100, mean = -5)
x <- c(1:100)
data <- data.frame(x, trace_0, trace_1, trace_2)
head(data)
```

```
##   x  trace_0      trace_1   trace_2
## 1 1 7.504929 -0.179177707 -4.316720
## 2 2 5.291646 -0.708512684 -4.686275
## 3 3 4.422269  0.003913931 -4.455104
## 4 4 4.276195 -1.452620827 -5.188447
## 5 5 4.500436 -2.984828576 -5.417425
## 6 6 5.854183 -2.122019810 -4.489960
```

???
---

# Creating a Plot

```r
p <- plot_ly(data, x = ~x, y = ~trace_0, name = 'trace 0', type = 'scatter', mode = 'lines') %>%
 add_trace(y = ~trace_1, name = 'trace 1', mode = 'lines+markers') %>%
 add_trace(y = ~trace_2, name = 'trace 2', mode = 'markers')
#p <- p %>% layout(hovermode = 'compare')
p
```

<div id="htmlwidget-77532b5711fb70acbb8f" style="width:864px;height:324px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-77532b5711fb70acbb8f">{"x":{"visdat":{"1db35ba71c36":["function () ","plotlyVisDat"]},"cur_data":"1db35ba71c36","attrs":{"1db35ba71c36":{"x":{},"y":{},"mode":"lines","name":"trace 0","alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"type":"scatter"},"1db35ba71c36.1":{"x":{},"y":{},"mode":"lines+markers","name":"trace 1","alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"type":"scatter","inherit":true},"1db35ba71c36.2":{"x":{},"y":{},"mode":"markers","name":"trace 2","alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"type":"scatter","inherit":true}},"layout":{"margin":{"b":40,"l":60,"t":25,"r":10},"xaxis":{"domain":[0,1],"automargin":true,"title":"x"},"yaxis":{"domain":[0,1],"automargin":true,"title":"trace_0"},"hovermode":"closest","showlegend":true},"source":"A","config":{"showSendToCloud":false},"data":[{"x":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100],"y":[7.50492903222052,5.29164580828922,4.42226897624163,4.27619473568386,4.50043610625525,5.85418341019428,5.02093723619141,5.59023461034465,4.98996034018994,5.71625720209868,3.58036892989459,4.96886397067477,6.71679247070957,4.68855067011902,3.5076289291364,6.14030641484692,3.24618572254589,4.50093333937364,6.32833804912021,4.44081882683086,3.05447368987522,4.79311520060022,5.779754852269,5.28761363609521,4.75567947005911,5.81872660652011,5.0124107266398,5.04191485996348,4.84304555616565,4.49622832417737,4.06319131628697,4.82049097537498,4.58888363508191,4.09332360710116,4.2924587321741,5.35967615823053,3.51193304896365,3.92199609459941,5.69742385425729,5.60945745209115,3.98420903969359,4.40642521730104,5.07758757449577,4.9298640340068,5.71894654014382,5.86387673692198,3.93202266524681,3.3867841449654,5.711130948174,5.65978848697532,4.4014036031694,4.73492441759737,6.40287160489688,3.84817439151402,3.92165634854689,4.78924319650551,5.55606679983222,4.60762986061886,5.28963665124825,5.90536628494282,4.75419119078384,3.76109037724475,5.40700425960604,3.57647366333796,5.68742011474478,5.69594711695454,4.80004939380382,5.1006096657149,5.06241296350448,5.44079896051564,5.10796343318471,5.71141137131855,4.73301887476656,4.04198176558837,4.32309348763551,3.02282250319831,5.90995124162362,2.79812604022018,6.44273265252244,4.51016270019633,5.00365360096607,4.60579990154878,4.94782185611528,4.53433881447586,5.4552578404307,6.10676953298125,5.47858667854692,4.77664074310258,4.69088031029003,4.60065617925707,3.54404392906877,4.56116106489363,5.02713683998324,5.09009711502711,6.69172985212699,6.13216870995637,4.79510315099586,6.94659728801337,5.1897585202724,4.78956447740149],"mode":"lines","name":"trace 0","type":"scatter","marker":{"color":"rgba(31,119,180,1)","line":{"color":"rgba(31,119,180,1)"}},"error_y":{"color":"rgba(31,119,180,1)"},"error_x":{"color":"rgba(31,119,180,1)"},"line":{"color":"rgba(31,119,180,1)"},"xaxis":"x","yaxis":"y","frame":null},{"x":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100],"y":[-0.179177707483047,-0.708512683808544,0.0039139306781789,-1.45262082709542,-2.98482857639312,-2.12201980997802,0.232179110400179,0.214742852618649,0.565533186689515,0.0171615837043228,-1.46051900325249,0.602052647745194,-0.625741553882214,-1.49961435975389,-0.724848396554349,0.65564692752083,0.87128136290475,-0.128818328605493,-0.68097179151677,-0.380174323229341,0.359730306384125,0.903625696848321,1.35652742058426,1.01093144426096,-1.68511502623475,-1.73128776009423,-1.05279230714062,0.403508910004732,-1.23912107448171,0.290630625632454,0.933614375396008,-1.1444177173101,1.35545292606072,0.491906587043412,0.782326696828569,-0.830240282522981,-0.197117563534843,-0.244411365119714,0.659950802370285,1.00239452411084,-1.02230519819403,0.390535550031266,1.34976721552968,-1.0278014564271,0.060009558102698,-0.36720139131748,-1.06236756517577,-0.718078092812964,0.0497254450308538,-0.490786991706686,0.0174150370866175,-1.38064755552822,1.62216570992328,1.0024206640673,-0.428493251047873,-0.982413719508632,-0.283408087497758,-1.08986619800716,-0.372204070035838,1.05071308022368,0.401279834952001,0.155504339105661,0.737834733988816,-1.07965280586984,0.408709809941592,-0.110044290034855,0.812661804956503,0.413180707965474,-0.498768792506465,0.360722918395318,1.58269141844621,3.04675210845152,0.825428333294388,1.38861909135069,0.280611199699665,0.358825970117268,-2.40529785898163,-0.299804284485078,0.230008426265525,-1.68164029325987,0.782942646292829,1.12770000649007,0.354585217620849,-0.723219198771644,-2.05538291102075,0.179481647092997,-0.661851306453853,1.03817592928485,1.72224880378206,0.560769138258326,2.5269820225483,-1.36370959887524,0.362917883927577,-0.219737154365483,-0.0450937160416998,0.624188131549882,0.12411948558992,-0.936454759544543,0.169270681577569,-0.600155064786346],"mode":"lines+markers","name":"trace 1","type":"scatter","marker":{"color":"rgba(255,127,14,1)","line":{"color":"rgba(255,127,14,1)"}},"error_y":{"color":"rgba(255,127,14,1)"},"error_x":{"color":"rgba(255,127,14,1)"},"line":{"color":"rgba(255,127,14,1)"},"xaxis":"x","yaxis":"y","frame":null},{"x":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100],"y":[-4.31671989135539,-4.68627485458177,-4.45510426250686,-5.18844657728225,-5.41742532037862,-4.48995988963265,-4.94192837226536,-3.62238914121487,-5.7355762986584,-4.21234461731698,-6.00064142628312,-4.56472583164911,-5.77850771823799,-5.96359131014124,-2.97731016075949,-6.33140481094157,-4.5376929030096,-3.95277041505984,-2.76488017672838,-4.94017405014481,-6.29489987242023,-3.79969882644088,-3.03204521750882,-5.21721363779536,-3.88438289292674,-4.57362958845115,-5.10423359281619,-4.4881912578032,-5.89567623449576,-2.85668511046301,-4.36244835100622,-4.49252305558201,-5.05097745960689,-4.0680478412839,-5.03128478411939,-5.57945032039213,-6.7528688360139,-4.57733931187253,-3.65591381686692,-6.61504165585624,-4.26625566639877,-5.42231555412652,-5.29523400320372,-5.55987694400747,-3.29733013784922,-5.40042225185086,-6.60237516810658,-4.78190013723547,-5.02711968225907,-2.39712790947534,-5.08576876485165,-4.37492290113893,-5.27278228870574,-5.76078834038567,-4.19564799102257,-5.21166889756001,-5.64480509725705,-4.44633882393727,-5.9211773601358,-5.04338109027304,-4.32095704441868,-5.80462693664967,-6.75156678467388,-4.43211244580784,-6.23204952526835,-6.69980510206237,-6.1969469026951,-5.2740118094625,-6.23607023610351,-5.10324606703318,-6.1215459870966,-5.15239794543242,-4.03527326096827,-4.0408590301999,-3.41105928080654,-4.85902584289377,-6.55971420433407,-5.16285592662917,-5.8355974103209,-3.91693165519078,-5.00643804843819,-5.46545512111023,-4.01384093222706,-5.78793356689144,-3.53760829714563,-6.67025340789792,-4.60689405286138,-6.25395445921009,-4.45909841110197,-6.54202358999914,-4.50978413264431,-4.48143909335414,-6.68837161023767,-5.08811316655237,-3.98280713241186,-2.8066404041089,-6.30718826577541,-5.32280537726324,-5.37520410401899,-3.81122158348222],"mode":"markers","name":"trace 2","type":"scatter","marker":{"color":"rgba(44,160,44,1)","line":{"color":"rgba(44,160,44,1)"}},"error_y":{"color":"rgba(44,160,44,1)"},"error_x":{"color":"rgba(44,160,44,1)"},"line":{"color":"rgba(44,160,44,1)"},"xaxis":"x","yaxis":"y","frame":null}],"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

???
---
# Creating a Plot

```r
p_hist <- data %>% plot_ly(alpha = 0.6) %>%
 add_histogram(x = ~trace_0) %>% add_histogram(x = ~trace_1) %>% add_histogram(x = ~trace_2) %>%
 layout(barmode = "overlay", xaxis = list(title = "My x-axis title"))
p_hist
```

<div id="htmlwidget-9e6d05404004f9a74bf3" style="width:864px;height:324px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-9e6d05404004f9a74bf3">{"x":{"visdat":{"1db36f314dc7":["function () ","plotlyVisDat"]},"cur_data":"1db36f314dc7","attrs":{"1db36f314dc7":{"alpha":0.6,"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":{},"type":"histogram","inherit":true},"1db36f314dc7.1":{"alpha":0.6,"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":{},"type":"histogram","inherit":true},"1db36f314dc7.2":{"alpha":0.6,"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"x":{},"type":"histogram","inherit":true}},"layout":{"margin":{"b":40,"l":60,"t":25,"r":10},"barmode":"overlay","xaxis":{"domain":[0,1],"automargin":true,"title":"My x-axis title"},"yaxis":{"domain":[0,1],"automargin":true},"hovermode":"closest","showlegend":true},"source":"A","config":{"showSendToCloud":false},"data":[{"x":[7.50492903222052,5.29164580828922,4.42226897624163,4.27619473568386,4.50043610625525,5.85418341019428,5.02093723619141,5.59023461034465,4.98996034018994,5.71625720209868,3.58036892989459,4.96886397067477,6.71679247070957,4.68855067011902,3.5076289291364,6.14030641484692,3.24618572254589,4.50093333937364,6.32833804912021,4.44081882683086,3.05447368987522,4.79311520060022,5.779754852269,5.28761363609521,4.75567947005911,5.81872660652011,5.0124107266398,5.04191485996348,4.84304555616565,4.49622832417737,4.06319131628697,4.82049097537498,4.58888363508191,4.09332360710116,4.2924587321741,5.35967615823053,3.51193304896365,3.92199609459941,5.69742385425729,5.60945745209115,3.98420903969359,4.40642521730104,5.07758757449577,4.9298640340068,5.71894654014382,5.86387673692198,3.93202266524681,3.3867841449654,5.711130948174,5.65978848697532,4.4014036031694,4.73492441759737,6.40287160489688,3.84817439151402,3.92165634854689,4.78924319650551,5.55606679983222,4.60762986061886,5.28963665124825,5.90536628494282,4.75419119078384,3.76109037724475,5.40700425960604,3.57647366333796,5.68742011474478,5.69594711695454,4.80004939380382,5.1006096657149,5.06241296350448,5.44079896051564,5.10796343318471,5.71141137131855,4.73301887476656,4.04198176558837,4.32309348763551,3.02282250319831,5.90995124162362,2.79812604022018,6.44273265252244,4.51016270019633,5.00365360096607,4.60579990154878,4.94782185611528,4.53433881447586,5.4552578404307,6.10676953298125,5.47858667854692,4.77664074310258,4.69088031029003,4.60065617925707,3.54404392906877,4.56116106489363,5.02713683998324,5.09009711502711,6.69172985212699,6.13216870995637,4.79510315099586,6.94659728801337,5.1897585202724,4.78956447740149],"type":"histogram","marker":{"color":"rgba(31,119,180,0.6)","line":{"color":"rgba(31,119,180,1)"}},"error_y":{"color":"rgba(31,119,180,0.6)"},"error_x":{"color":"rgba(31,119,180,0.6)"},"xaxis":"x","yaxis":"y","frame":null},{"x":[-0.179177707483047,-0.708512683808544,0.0039139306781789,-1.45262082709542,-2.98482857639312,-2.12201980997802,0.232179110400179,0.214742852618649,0.565533186689515,0.0171615837043228,-1.46051900325249,0.602052647745194,-0.625741553882214,-1.49961435975389,-0.724848396554349,0.65564692752083,0.87128136290475,-0.128818328605493,-0.68097179151677,-0.380174323229341,0.359730306384125,0.903625696848321,1.35652742058426,1.01093144426096,-1.68511502623475,-1.73128776009423,-1.05279230714062,0.403508910004732,-1.23912107448171,0.290630625632454,0.933614375396008,-1.1444177173101,1.35545292606072,0.491906587043412,0.782326696828569,-0.830240282522981,-0.197117563534843,-0.244411365119714,0.659950802370285,1.00239452411084,-1.02230519819403,0.390535550031266,1.34976721552968,-1.0278014564271,0.060009558102698,-0.36720139131748,-1.06236756517577,-0.718078092812964,0.0497254450308538,-0.490786991706686,0.0174150370866175,-1.38064755552822,1.62216570992328,1.0024206640673,-0.428493251047873,-0.982413719508632,-0.283408087497758,-1.08986619800716,-0.372204070035838,1.05071308022368,0.401279834952001,0.155504339105661,0.737834733988816,-1.07965280586984,0.408709809941592,-0.110044290034855,0.812661804956503,0.413180707965474,-0.498768792506465,0.360722918395318,1.58269141844621,3.04675210845152,0.825428333294388,1.38861909135069,0.280611199699665,0.358825970117268,-2.40529785898163,-0.299804284485078,0.230008426265525,-1.68164029325987,0.782942646292829,1.12770000649007,0.354585217620849,-0.723219198771644,-2.05538291102075,0.179481647092997,-0.661851306453853,1.03817592928485,1.72224880378206,0.560769138258326,2.5269820225483,-1.36370959887524,0.362917883927577,-0.219737154365483,-0.0450937160416998,0.624188131549882,0.12411948558992,-0.936454759544543,0.169270681577569,-0.600155064786346],"type":"histogram","marker":{"color":"rgba(255,127,14,0.6)","line":{"color":"rgba(255,127,14,1)"}},"error_y":{"color":"rgba(255,127,14,0.6)"},"error_x":{"color":"rgba(255,127,14,0.6)"},"xaxis":"x","yaxis":"y","frame":null},{"x":[-4.31671989135539,-4.68627485458177,-4.45510426250686,-5.18844657728225,-5.41742532037862,-4.48995988963265,-4.94192837226536,-3.62238914121487,-5.7355762986584,-4.21234461731698,-6.00064142628312,-4.56472583164911,-5.77850771823799,-5.96359131014124,-2.97731016075949,-6.33140481094157,-4.5376929030096,-3.95277041505984,-2.76488017672838,-4.94017405014481,-6.29489987242023,-3.79969882644088,-3.03204521750882,-5.21721363779536,-3.88438289292674,-4.57362958845115,-5.10423359281619,-4.4881912578032,-5.89567623449576,-2.85668511046301,-4.36244835100622,-4.49252305558201,-5.05097745960689,-4.0680478412839,-5.03128478411939,-5.57945032039213,-6.7528688360139,-4.57733931187253,-3.65591381686692,-6.61504165585624,-4.26625566639877,-5.42231555412652,-5.29523400320372,-5.55987694400747,-3.29733013784922,-5.40042225185086,-6.60237516810658,-4.78190013723547,-5.02711968225907,-2.39712790947534,-5.08576876485165,-4.37492290113893,-5.27278228870574,-5.76078834038567,-4.19564799102257,-5.21166889756001,-5.64480509725705,-4.44633882393727,-5.9211773601358,-5.04338109027304,-4.32095704441868,-5.80462693664967,-6.75156678467388,-4.43211244580784,-6.23204952526835,-6.69980510206237,-6.1969469026951,-5.2740118094625,-6.23607023610351,-5.10324606703318,-6.1215459870966,-5.15239794543242,-4.03527326096827,-4.0408590301999,-3.41105928080654,-4.85902584289377,-6.55971420433407,-5.16285592662917,-5.8355974103209,-3.91693165519078,-5.00643804843819,-5.46545512111023,-4.01384093222706,-5.78793356689144,-3.53760829714563,-6.67025340789792,-4.60689405286138,-6.25395445921009,-4.45909841110197,-6.54202358999914,-4.50978413264431,-4.48143909335414,-6.68837161023767,-5.08811316655237,-3.98280713241186,-2.8066404041089,-6.30718826577541,-5.32280537726324,-5.37520410401899,-3.81122158348222],"type":"histogram","marker":{"color":"rgba(44,160,44,0.6)","line":{"color":"rgba(44,160,44,1)"}},"error_y":{"color":"rgba(44,160,44,0.6)"},"error_x":{"color":"rgba(44,160,44,0.6)"},"xaxis":"x","yaxis":"y","frame":null}],"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

???

---
# Iris

```r
pal <- c("red", "blue", "green")

p <- iris %>% plot_ly(x = ~Sepal.Length, y = ~Petal.Length, color = ~Species, colors = pal,
 type = "scatter", mode = "markers", hoverinfo = 'text',
 text = ~paste(' Species: ', Species,
 ' Petal Lenght: ', Petal.Length,
 ' Petal Width: ', Petal.Width))
p
```

<div id="htmlwidget-24564466471e091ea5da" style="width:864px;height:288px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-24564466471e091ea5da">{"x":{"visdat":{"1db32ff721a9":["function () ","plotlyVisDat"]},"cur_data":"1db32ff721a9","attrs":{"1db32ff721a9":{"x":{},"y":{},"mode":"markers","hoverinfo":"text","text":{},"color":{},"colors":["red","blue","green"],"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"type":"scatter"}},"layout":{"margin":{"b":40,"l":60,"t":25,"r":10},"xaxis":{"domain":[0,1],"automargin":true,"title":"Sepal.Length"},"yaxis":{"domain":[0,1],"automargin":true,"title":"Petal.Length"},"hovermode":"closest","showlegend":true},"source":"A","config":{"showSendToCloud":false},"data":[{"x":[5.1,4.9,4.7,4.6,5,5.4,4.6,5,4.4,4.9,5.4,4.8,4.8,4.3,5.8,5.7,5.4,5.1,5.7,5.1,5.4,5.1,4.6,5.1,4.8,5,5,5.2,5.2,4.7,4.8,5.4,5.2,5.5,4.9,5,5.5,4.9,4.4,5.1,5,4.5,4.4,5,5.1,4.8,5.1,4.6,5.3,5],"y":[1.4,1.4,1.3,1.5,1.4,1.7,1.4,1.5,1.4,1.5,1.5,1.6,1.4,1.1,1.2,1.5,1.3,1.4,1.7,1.5,1.7,1.5,1,1.7,1.9,1.6,1.6,1.5,1.4,1.6,1.6,1.5,1.5,1.4,1.5,1.2,1.3,1.4,1.3,1.5,1.3,1.3,1.3,1.6,1.9,1.4,1.6,1.4,1.5,1.4],"mode":"markers","hoverinfo":["text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text"],"text":["<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.3 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.7 <\/br> Petal Width: 0.4","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.3","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.1","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.6 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.1","<\/br> Species: setosa <\/br> Petal Lenght: 1.1 <\/br> Petal Width: 0.1","<\/br> Species: setosa <\/br> Petal Lenght: 1.2 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.4","<\/br> Species: setosa <\/br> Petal Lenght: 1.3 <\/br> Petal Width: 0.4","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.3","<\/br> Species: setosa <\/br> Petal Lenght: 1.7 <\/br> Petal Width: 0.3","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.3","<\/br> Species: setosa <\/br> Petal Lenght: 1.7 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.4","<\/br> Species: setosa <\/br> Petal Lenght: 1 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.7 <\/br> Petal Width: 0.5","<\/br> Species: setosa <\/br> Petal Lenght: 1.9 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.6 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.6 <\/br> Petal Width: 0.4","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.6 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.6 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.4","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.1","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.2 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.3 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.1","<\/br> Species: setosa <\/br> Petal Lenght: 1.3 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.3 <\/br> Petal Width: 0.3","<\/br> Species: setosa <\/br> Petal Lenght: 1.3 <\/br> Petal Width: 0.3","<\/br> Species: setosa <\/br> Petal Lenght: 1.3 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.6 <\/br> Petal Width: 0.6","<\/br> Species: setosa <\/br> Petal Lenght: 1.9 <\/br> Petal Width: 0.4","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.3","<\/br> Species: setosa <\/br> Petal Lenght: 1.6 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.5 <\/br> Petal Width: 0.2","<\/br> Species: setosa <\/br> Petal Lenght: 1.4 <\/br> Petal Width: 0.2"],"type":"scatter","name":"setosa","marker":{"color":"rgba(255,0,0,1)","line":{"color":"rgba(255,0,0,1)"}},"textfont":{"color":"rgba(255,0,0,1)"},"error_y":{"color":"rgba(255,0,0,1)"},"error_x":{"color":"rgba(255,0,0,1)"},"line":{"color":"rgba(255,0,0,1)"},"xaxis":"x","yaxis":"y","frame":null},{"x":[7,6.4,6.9,5.5,6.5,5.7,6.3,4.9,6.6,5.2,5,5.9,6,6.1,5.6,6.7,5.6,5.8,6.2,5.6,5.9,6.1,6.3,6.1,6.4,6.6,6.8,6.7,6,5.7,5.5,5.5,5.8,6,5.4,6,6.7,6.3,5.6,5.5,5.5,6.1,5.8,5,5.6,5.7,5.7,6.2,5.1,5.7],"y":[4.7,4.5,4.9,4,4.6,4.5,4.7,3.3,4.6,3.9,3.5,4.2,4,4.7,3.6,4.4,4.5,4.1,4.5,3.9,4.8,4,4.9,4.7,4.3,4.4,4.8,5,4.5,3.5,3.8,3.7,3.9,5.1,4.5,4.5,4.7,4.4,4.1,4,4.4,4.6,4,3.3,4.2,4.2,4.2,4.3,3,4.1],"mode":"markers","hoverinfo":["text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text"],"text":["<\/br> Species: versicolor <\/br> Petal Lenght: 4.7 <\/br> Petal Width: 1.4","<\/br> Species: versicolor <\/br> Petal Lenght: 4.5 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 4.9 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 4 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4.6 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 4.5 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4.7 <\/br> Petal Width: 1.6","<\/br> Species: versicolor <\/br> Petal Lenght: 3.3 <\/br> Petal Width: 1","<\/br> Species: versicolor <\/br> Petal Lenght: 4.6 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 3.9 <\/br> Petal Width: 1.4","<\/br> Species: versicolor <\/br> Petal Lenght: 3.5 <\/br> Petal Width: 1","<\/br> Species: versicolor <\/br> Petal Lenght: 4.2 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 4 <\/br> Petal Width: 1","<\/br> Species: versicolor <\/br> Petal Lenght: 4.7 <\/br> Petal Width: 1.4","<\/br> Species: versicolor <\/br> Petal Lenght: 3.6 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4.4 <\/br> Petal Width: 1.4","<\/br> Species: versicolor <\/br> Petal Lenght: 4.5 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 4.1 <\/br> Petal Width: 1","<\/br> Species: versicolor <\/br> Petal Lenght: 4.5 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 3.9 <\/br> Petal Width: 1.1","<\/br> Species: versicolor <\/br> Petal Lenght: 4.8 <\/br> Petal Width: 1.8","<\/br> Species: versicolor <\/br> Petal Lenght: 4 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4.9 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 4.7 <\/br> Petal Width: 1.2","<\/br> Species: versicolor <\/br> Petal Lenght: 4.3 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4.4 <\/br> Petal Width: 1.4","<\/br> Species: versicolor <\/br> Petal Lenght: 4.8 <\/br> Petal Width: 1.4","<\/br> Species: versicolor <\/br> Petal Lenght: 5 <\/br> Petal Width: 1.7","<\/br> Species: versicolor <\/br> Petal Lenght: 4.5 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 3.5 <\/br> Petal Width: 1","<\/br> Species: versicolor <\/br> Petal Lenght: 3.8 <\/br> Petal Width: 1.1","<\/br> Species: versicolor <\/br> Petal Lenght: 3.7 <\/br> Petal Width: 1","<\/br> Species: versicolor <\/br> Petal Lenght: 3.9 <\/br> Petal Width: 1.2","<\/br> Species: versicolor <\/br> Petal Lenght: 5.1 <\/br> Petal Width: 1.6","<\/br> Species: versicolor <\/br> Petal Lenght: 4.5 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 4.5 <\/br> Petal Width: 1.6","<\/br> Species: versicolor <\/br> Petal Lenght: 4.7 <\/br> Petal Width: 1.5","<\/br> Species: versicolor <\/br> Petal Lenght: 4.4 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4.1 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4.4 <\/br> Petal Width: 1.2","<\/br> Species: versicolor <\/br> Petal Lenght: 4.6 <\/br> Petal Width: 1.4","<\/br> Species: versicolor <\/br> Petal Lenght: 4 <\/br> Petal Width: 1.2","<\/br> Species: versicolor <\/br> Petal Lenght: 3.3 <\/br> Petal Width: 1","<\/br> Species: versicolor <\/br> Petal Lenght: 4.2 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4.2 <\/br> Petal Width: 1.2","<\/br> Species: versicolor <\/br> Petal Lenght: 4.2 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 4.3 <\/br> Petal Width: 1.3","<\/br> Species: versicolor <\/br> Petal Lenght: 3 <\/br> Petal Width: 1.1","<\/br> Species: versicolor <\/br> Petal Lenght: 4.1 <\/br> Petal Width: 1.3"],"type":"scatter","name":"versicolor","marker":{"color":"rgba(0,0,255,1)","line":{"color":"rgba(0,0,255,1)"}},"textfont":{"color":"rgba(0,0,255,1)"},"error_y":{"color":"rgba(0,0,255,1)"},"error_x":{"color":"rgba(0,0,255,1)"},"line":{"color":"rgba(0,0,255,1)"},"xaxis":"x","yaxis":"y","frame":null},{"x":[6.3,5.8,7.1,6.3,6.5,7.6,4.9,7.3,6.7,7.2,6.5,6.4,6.8,5.7,5.8,6.4,6.5,7.7,7.7,6,6.9,5.6,7.7,6.3,6.7,7.2,6.2,6.1,6.4,7.2,7.4,7.9,6.4,6.3,6.1,7.7,6.3,6.4,6,6.9,6.7,6.9,5.8,6.8,6.7,6.7,6.3,6.5,6.2,5.9],"y":[6,5.1,5.9,5.6,5.8,6.6,4.5,6.3,5.8,6.1,5.1,5.3,5.5,5,5.1,5.3,5.5,6.7,6.9,5,5.7,4.9,6.7,4.9,5.7,6,4.8,4.9,5.6,5.8,6.1,6.4,5.6,5.1,5.6,6.1,5.6,5.5,4.8,5.4,5.6,5.1,5.1,5.9,5.7,5.2,5,5.2,5.4,5.1],"mode":"markers","hoverinfo":["text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text","text"],"text":["<\/br> Species: virginica <\/br> Petal Lenght: 6 <\/br> Petal Width: 2.5","<\/br> Species: virginica <\/br> Petal Lenght: 5.1 <\/br> Petal Width: 1.9","<\/br> Species: virginica <\/br> Petal Lenght: 5.9 <\/br> Petal Width: 2.1","<\/br> Species: virginica <\/br> Petal Lenght: 5.6 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 5.8 <\/br> Petal Width: 2.2","<\/br> Species: virginica <\/br> Petal Lenght: 6.6 <\/br> Petal Width: 2.1","<\/br> Species: virginica <\/br> Petal Lenght: 4.5 <\/br> Petal Width: 1.7","<\/br> Species: virginica <\/br> Petal Lenght: 6.3 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 5.8 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 6.1 <\/br> Petal Width: 2.5","<\/br> Species: virginica <\/br> Petal Lenght: 5.1 <\/br> Petal Width: 2","<\/br> Species: virginica <\/br> Petal Lenght: 5.3 <\/br> Petal Width: 1.9","<\/br> Species: virginica <\/br> Petal Lenght: 5.5 <\/br> Petal Width: 2.1","<\/br> Species: virginica <\/br> Petal Lenght: 5 <\/br> Petal Width: 2","<\/br> Species: virginica <\/br> Petal Lenght: 5.1 <\/br> Petal Width: 2.4","<\/br> Species: virginica <\/br> Petal Lenght: 5.3 <\/br> Petal Width: 2.3","<\/br> Species: virginica <\/br> Petal Lenght: 5.5 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 6.7 <\/br> Petal Width: 2.2","<\/br> Species: virginica <\/br> Petal Lenght: 6.9 <\/br> Petal Width: 2.3","<\/br> Species: virginica <\/br> Petal Lenght: 5 <\/br> Petal Width: 1.5","<\/br> Species: virginica <\/br> Petal Lenght: 5.7 <\/br> Petal Width: 2.3","<\/br> Species: virginica <\/br> Petal Lenght: 4.9 <\/br> Petal Width: 2","<\/br> Species: virginica <\/br> Petal Lenght: 6.7 <\/br> Petal Width: 2","<\/br> Species: virginica <\/br> Petal Lenght: 4.9 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 5.7 <\/br> Petal Width: 2.1","<\/br> Species: virginica <\/br> Petal Lenght: 6 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 4.8 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 4.9 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 5.6 <\/br> Petal Width: 2.1","<\/br> Species: virginica <\/br> Petal Lenght: 5.8 <\/br> Petal Width: 1.6","<\/br> Species: virginica <\/br> Petal Lenght: 6.1 <\/br> Petal Width: 1.9","<\/br> Species: virginica <\/br> Petal Lenght: 6.4 <\/br> Petal Width: 2","<\/br> Species: virginica <\/br> Petal Lenght: 5.6 <\/br> Petal Width: 2.2","<\/br> Species: virginica <\/br> Petal Lenght: 5.1 <\/br> Petal Width: 1.5","<\/br> Species: virginica <\/br> Petal Lenght: 5.6 <\/br> Petal Width: 1.4","<\/br> Species: virginica <\/br> Petal Lenght: 6.1 <\/br> Petal Width: 2.3","<\/br> Species: virginica <\/br> Petal Lenght: 5.6 <\/br> Petal Width: 2.4","<\/br> Species: virginica <\/br> Petal Lenght: 5.5 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 4.8 <\/br> Petal Width: 1.8","<\/br> Species: virginica <\/br> Petal Lenght: 5.4 <\/br> Petal Width: 2.1","<\/br> Species: virginica <\/br> Petal Lenght: 5.6 <\/br> Petal Width: 2.4","<\/br> Species: virginica <\/br> Petal Lenght: 5.1 <\/br> Petal Width: 2.3","<\/br> Species: virginica <\/br> Petal Lenght: 5.1 <\/br> Petal Width: 1.9","<\/br> Species: virginica <\/br> Petal Lenght: 5.9 <\/br> Petal Width: 2.3","<\/br> Species: virginica <\/br> Petal Lenght: 5.7 <\/br> Petal Width: 2.5","<\/br> Species: virginica <\/br> Petal Lenght: 5.2 <\/br> Petal Width: 2.3","<\/br> Species: virginica <\/br> Petal Lenght: 5 <\/br> Petal Width: 1.9","<\/br> Species: virginica <\/br> Petal Lenght: 5.2 <\/br> Petal Width: 2","<\/br> Species: virginica <\/br> Petal Lenght: 5.4 <\/br> Petal Width: 2.3","<\/br> Species: virginica <\/br> Petal Lenght: 5.1 <\/br> Petal Width: 1.8"],"type":"scatter","name":"virginica","marker":{"color":"rgba(0,255,0,1)","line":{"color":"rgba(0,255,0,1)"}},"textfont":{"color":"rgba(0,255,0,1)"},"error_y":{"color":"rgba(0,255,0,1)"},"error_x":{"color":"rgba(0,255,0,1)"},"line":{"color":"rgba(0,255,0,1)"},"xaxis":"x","yaxis":"y","frame":null}],"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

???

---
# dygraphs for R

dygraphs in R website: https://rstudio.github.io/dygraphs/index.html

"The dygraphs package is an R interface to the dygraphs JavaScript charting library. It provides rich facilities for charting time-series data in R" (https://rstudio.github.io/dygraphs/index.html)

```r
if (!require("dygraphs")) install.packages("dygraphs")
library(dygraphs)
```

???

---
# dygraphs for R

```r
lungDeaths <- cbind(mdeaths, fdeaths)
dygraph(lungDeaths) %>% dyRangeSelector()
```

<div id="htmlwidget-a7c4c39e2a7caa8257fa" style="width:864px;height:396px;" class="dygraphs html-widget"></div>
<script type="application/json" data-for="htmlwidget-a7c4c39e2a7caa8257fa">{"x":{"attrs":{"labels":["month","mdeaths","fdeaths"],"legend":"auto","retainDateWindow":false,"axes":{"x":{"pixelsPerLabel":60}},"showRangeSelector":true,"rangeSelectorHeight":40,"rangeSelectorPlotFillColor":" #A7B1C4","rangeSelectorPlotStrokeColor":"#808FAB","interactionModel":"Dygraph.Interaction.defaultModel"},"scale":"monthly","annotations":[],"shadings":[],"events":[],"format":"date","data":[["1974-01-01T00:00:00.000Z","1974-02-01T00:00:00.000Z","1974-03-01T00:00:00.000Z","1974-04-01T00:00:00.000Z","1974-05-01T00:00:00.000Z","1974-06-01T00:00:00.000Z","1974-07-01T00:00:00.000Z","1974-08-01T00:00:00.000Z","1974-09-01T00:00:00.000Z","1974-10-01T00:00:00.000Z","1974-11-01T00:00:00.000Z","1974-12-01T00:00:00.000Z","1975-01-01T00:00:00.000Z","1975-02-01T00:00:00.000Z","1975-03-01T00:00:00.000Z","1975-04-01T00:00:00.000Z","1975-05-01T00:00:00.000Z","1975-06-01T00:00:00.000Z","1975-07-01T00:00:00.000Z","1975-08-01T00:00:00.000Z","1975-09-01T00:00:00.000Z","1975-10-01T00:00:00.000Z","1975-11-01T00:00:00.000Z","1975-12-01T00:00:00.000Z","1976-01-01T00:00:00.000Z","1976-02-01T00:00:00.000Z","1976-03-01T00:00:00.000Z","1976-04-01T00:00:00.000Z","1976-05-01T00:00:00.000Z","1976-06-01T00:00:00.000Z","1976-07-01T00:00:00.000Z","1976-08-01T00:00:00.000Z","1976-09-01T00:00:00.000Z","1976-10-01T00:00:00.000Z","1976-11-01T00:00:00.000Z","1976-12-01T00:00:00.000Z","1977-01-01T00:00:00.000Z","1977-02-01T00:00:00.000Z","1977-03-01T00:00:00.000Z","1977-04-01T00:00:00.000Z","1977-05-01T00:00:00.000Z","1977-06-01T00:00:00.000Z","1977-07-01T00:00:00.000Z","1977-08-01T00:00:00.000Z","1977-09-01T00:00:00.000Z","1977-10-01T00:00:00.000Z","1977-11-01T00:00:00.000Z","1977-12-01T00:00:00.000Z","1978-01-01T00:00:00.000Z","1978-02-01T00:00:00.000Z","1978-03-01T00:00:00.000Z","1978-04-01T00:00:00.000Z","1978-05-01T00:00:00.000Z","1978-06-01T00:00:00.000Z","1978-07-01T00:00:00.000Z","1978-08-01T00:00:00.000Z","1978-09-01T00:00:00.000Z","1978-10-01T00:00:00.000Z","1978-11-01T00:00:00.000Z","1978-12-01T00:00:00.000Z","1979-01-01T00:00:00.000Z","1979-02-01T00:00:00.000Z","1979-03-01T00:00:00.000Z","1979-04-01T00:00:00.000Z","1979-05-01T00:00:00.000Z","1979-06-01T00:00:00.000Z","1979-07-01T00:00:00.000Z","1979-08-01T00:00:00.000Z","1979-09-01T00:00:00.000Z","1979-10-01T00:00:00.000Z","1979-11-01T00:00:00.000Z","1979-12-01T00:00:00.000Z"],[2134,1863,1877,1877,1492,1249,1280,1131,1209,1492,1621,1846,2103,2137,2153,1833,1403,1288,1186,1133,1053,1347,1545,2066,2020,2750,2283,1479,1189,1160,1113,970,999,1208,1467,2059,2240,1634,1722,1801,1246,1162,1087,1013,959,1179,1229,1655,2019,2284,1942,1423,1340,1187,1098,1004,970,1140,1110,1812,2263,1820,1846,1531,1215,1075,1056,975,940,1081,1294,1341],[901,689,827,677,522,406,441,393,387,582,578,666,830,752,785,664,467,438,421,412,343,440,531,771,767,1141,896,532,447,420,376,330,357,445,546,764,862,660,663,643,502,392,411,348,387,385,411,638,796,853,737,546,530,446,431,362,387,430,425,679,821,785,727,612,478,429,405,379,393,411,487,574]]},"evals":["attrs.interactionModel"],"jsHooks":[]}</script>

???

---
# Custom plots

```r
lungDeaths <- cbind(mdeaths, fdeaths)
dygraph(lungDeaths) %>%
 dyRangeSelector() %>%
 dyBarSeries('fdeaths') %>%
 dyFilledLine('mdeaths')
```

<div id="htmlwidget-f40280e7f8a3d9149874" style="width:864px;height:324px;" class="dygraphs html-widget"></div>
<script type="application/json" data-for="htmlwidget-f40280e7f8a3d9149874">{"x":{"attrs":{"labels":["month","fdeaths","mdeaths"],"legend":"auto","retainDateWindow":false,"axes":{"x":{"pixelsPerLabel":60}},"showRangeSelector":true,"rangeSelectorHeight":40,"rangeSelectorPlotFillColor":" #A7B1C4","rangeSelectorPlotStrokeColor":"#808FAB","interactionModel":"Dygraph.Interaction.defaultModel","series":{"fdeaths":{"axis":"y","plotter":"/**\n * Bar Chart plotter is adapted from http://dygraphs.com/tests/plotters.html\n */\nfunction barSeriesPlotter(e) {\n var g = e.dygraph;\n var ctx = e.drawingContext;\n var points = e.points;\n var axis = g.attr_(\"axis\", e.setName);\n var y_bottom = g.toDomYCoord(0, axis == \"y2\" ? 1 : 0);\n\n ctx.fillStyle = e.color;\n ctx.strokeStyle = e.color;\n\n // Find the minimum separation between x-values.\n // This determines the bar width.\n var min_sep = Infinity;\n for (var i = 1; i < points.length; i++) {\n var sep = points[i].canvasx - points[i - 1].canvasx;\n if (sep < min_sep) min_sep = sep;\n }\n var bar_width = Math.floor(2.0 / 3 * min_sep);\n\n // Do the actual plotting.\n for (var i = 0; i < points.length; i++) {\n var p = points[i];\n var center_x = p.canvasx;\n\n ctx.fillRect(center_x - bar_width / 2, p.canvasy,\n bar_width, y_bottom - p.canvasy);\n\n ctx.strokeRect(center_x - bar_width / 2, p.canvasy,\n bar_width, y_bottom - p.canvasy);\n }\n}\n"},"mdeaths":{"axis":"y","plotter":"// the _fillplotter combined with the _lineplotter function extracted from dygraphs-combined-dev.js, available for use in conjunction with other per-series plotters and group plotters\n\nfunction filledlineplotter(e) {\n var g = e.dygraph;\n var setName = e.setName;\n\n var area = e.plotArea;\n var sets = e.allSeriesPoints;\n var setCount = sets.length;\n\n var fillAlpha = g.getNumericOption('fillAlpha');\n var stackedGraph = g.getBooleanOption(\"stackedGraph\");\n var colors = g.getColors();\n\n // For stacked graphs, track the baseline for filling.\n //\n // The filled areas below graph lines are trapezoids with two\n // vertical edges. The top edge is the line segment being drawn, and\n // the baseline is the bottom edge. Each baseline corresponds to the\n // top line segment from the previous stacked line. In the case of\n // step plots, the trapezoids are rectangles.\n var baseline = {};\n var currBaseline;\n var prevStepPlot; // for different line drawing modes (line/step) per series\n\n // Helper function to trace a line back along the baseline.\n var traceBackPath = function(ctx, baselineX, baselineY, pathBack) {\n ctx.lineTo(baselineX, baselineY);\n if (stackedGraph) {\n for (var i = pathBack.length - 1; i >= 0; i--) {\n var pt = pathBack[i];\n ctx.lineTo(pt[0], pt[1]);\n }\n }\n };\n\n var ctx = e.drawingContext;\n\n var stepPlot = g.getBooleanOption('stepPlot', setName);\n var color = e.color\n var axis = g.axisPropertiesForSeries(setName);\n var axisY = 1.0 + axis.minyval * axis.yscale;\n if (axisY < 0.0) axisY = 0.0;\n else if (axisY > 1.0) axisY = 1.0;\n axisY = area.h * axisY + area.y;\n\n var points = e.points;\n var iter = Dygraph.createIterator(points, 0, points.length,\n DygraphCanvasRenderer._getIteratorPredicate(\n g.getBooleanOption(\"connectSeparatedPoints\", setName)));\n\n // setup graphics context\n var prevX = NaN;\n var prevYs = [-1, -1];\n var newYs;\n // should be same color as the lines but only 15% opaque.\n var rgb = Dygraph.toRGB_(color);\n var err_color =\n 'rgba(' + rgb.r + ',' + rgb.g + ',' + rgb.b + ',' + fillAlpha + ')';\n ctx.fillStyle = err_color;\n ctx.beginPath();\n var last_x, is_first = true;\n\n // If the point density is high enough, dropping segments on their way to\n // the canvas justifies the overhead of doing so.\n if (points.length > 2 * g.width_ || Dygraph.FORCE_FAST_PROXY) {\n ctx = DygraphCanvasRenderer._fastCanvasProxy(ctx);\n }\n\n // For filled charts, we draw points from left to right, then back along\n // the x-axis to complete a shape for filling.\n // For stacked plots, this \"back path\" is a more complex shape. This array\n // stores the [x, y] values needed to trace that shape.\n var pathBack = [];\n\n // TODO(danvk): there are a lot of options at play in this loop.\n // The logic would be much clearer if some (e.g. stackGraph and\n // stepPlot) were split off into separate sub-plotters.\n var point;\n while (iter.hasNext) {\n point = iter.next();\n if (!Dygraph.isOK(point.y) && !stepPlot) {\n traceBackPath(ctx, prevX, prevYs[1], pathBack);\n pathBack = [];\n prevX = NaN;\n if (point.y_stacked !== null && !isNaN(point.y_stacked)) {\n baseline[point.canvasx] = area.h * point.y_stacked + area.y;\n }\n continue;\n }\n \n if (isNaN(point.canvasy) && stepPlot) {\n newYs = [ area.y + area.h, axisY ];\n } else {\n newYs = [ point.canvasy, axisY ];\n }\n \n if (!isNaN(prevX)) {\n // Move to top fill point\n if (stepPlot) {\n ctx.lineTo(point.canvasx, prevYs[0]);\n ctx.lineTo(point.canvasx, newYs[0]);\n } else {\n ctx.lineTo(point.canvasx, newYs[0]);\n }\n\n } else {\n ctx.moveTo(point.canvasx, newYs[1]);\n ctx.lineTo(point.canvasx, newYs[0]);\n }\n \n prevYs = newYs;\n prevX = point.canvasx;\n \n }\n \n prevStepPlot = stepPlot;\n \n if (newYs && point) {\n traceBackPath(ctx, point.canvasx, newYs[1], pathBack);\n pathBack = [];\n }\n \n ctx.fill();\n \n //now execute the basic line plotter... per precedence noted in dygraph-combined-dev.js\n DygraphCanvasRenderer._linePlotter(e);\n}"}}},"scale":"monthly","annotations":[],"shadings":[],"events":[],"format":"date","data":[["1974-01-01T00:00:00.000Z","1974-02-01T00:00:00.000Z","1974-03-01T00:00:00.000Z","1974-04-01T00:00:00.000Z","1974-05-01T00:00:00.000Z","1974-06-01T00:00:00.000Z","1974-07-01T00:00:00.000Z","1974-08-01T00:00:00.000Z","1974-09-01T00:00:00.000Z","1974-10-01T00:00:00.000Z","1974-11-01T00:00:00.000Z","1974-12-01T00:00:00.000Z","1975-01-01T00:00:00.000Z","1975-02-01T00:00:00.000Z","1975-03-01T00:00:00.000Z","1975-04-01T00:00:00.000Z","1975-05-01T00:00:00.000Z","1975-06-01T00:00:00.000Z","1975-07-01T00:00:00.000Z","1975-08-01T00:00:00.000Z","1975-09-01T00:00:00.000Z","1975-10-01T00:00:00.000Z","1975-11-01T00:00:00.000Z","1975-12-01T00:00:00.000Z","1976-01-01T00:00:00.000Z","1976-02-01T00:00:00.000Z","1976-03-01T00:00:00.000Z","1976-04-01T00:00:00.000Z","1976-05-01T00:00:00.000Z","1976-06-01T00:00:00.000Z","1976-07-01T00:00:00.000Z","1976-08-01T00:00:00.000Z","1976-09-01T00:00:00.000Z","1976-10-01T00:00:00.000Z","1976-11-01T00:00:00.000Z","1976-12-01T00:00:00.000Z","1977-01-01T00:00:00.000Z","1977-02-01T00:00:00.000Z","1977-03-01T00:00:00.000Z","1977-04-01T00:00:00.000Z","1977-05-01T00:00:00.000Z","1977-06-01T00:00:00.000Z","1977-07-01T00:00:00.000Z","1977-08-01T00:00:00.000Z","1977-09-01T00:00:00.000Z","1977-10-01T00:00:00.000Z","1977-11-01T00:00:00.000Z","1977-12-01T00:00:00.000Z","1978-01-01T00:00:00.000Z","1978-02-01T00:00:00.000Z","1978-03-01T00:00:00.000Z","1978-04-01T00:00:00.000Z","1978-05-01T00:00:00.000Z","1978-06-01T00:00:00.000Z","1978-07-01T00:00:00.000Z","1978-08-01T00:00:00.000Z","1978-09-01T00:00:00.000Z","1978-10-01T00:00:00.000Z","1978-11-01T00:00:00.000Z","1978-12-01T00:00:00.000Z","1979-01-01T00:00:00.000Z","1979-02-01T00:00:00.000Z","1979-03-01T00:00:00.000Z","1979-04-01T00:00:00.000Z","1979-05-01T00:00:00.000Z","1979-06-01T00:00:00.000Z","1979-07-01T00:00:00.000Z","1979-08-01T00:00:00.000Z","1979-09-01T00:00:00.000Z","1979-10-01T00:00:00.000Z","1979-11-01T00:00:00.000Z","1979-12-01T00:00:00.000Z"],[901,689,827,677,522,406,441,393,387,582,578,666,830,752,785,664,467,438,421,412,343,440,531,771,767,1141,896,532,447,420,376,330,357,445,546,764,862,660,663,643,502,392,411,348,387,385,411,638,796,853,737,546,530,446,431,362,387,430,425,679,821,785,727,612,478,429,405,379,393,411,487,574],[2134,1863,1877,1877,1492,1249,1280,1131,1209,1492,1621,1846,2103,2137,2153,1833,1403,1288,1186,1133,1053,1347,1545,2066,2020,2750,2283,1479,1189,1160,1113,970,999,1208,1467,2059,2240,1634,1722,1801,1246,1162,1087,1013,959,1179,1229,1655,2019,2284,1942,1423,1340,1187,1098,1004,970,1140,1110,1812,2263,1820,1846,1531,1215,1075,1056,975,940,1081,1294,1341]]},"evals":["attrs.interactionModel","attrs.series.fdeaths.plotter","attrs.series.mdeaths.plotter"],"jsHooks":[]}</script>
???

---

class: center, middle

# Thank you!

Slides created via the [**xaringan**](https://github.com/yihui/xaringan) R package.
